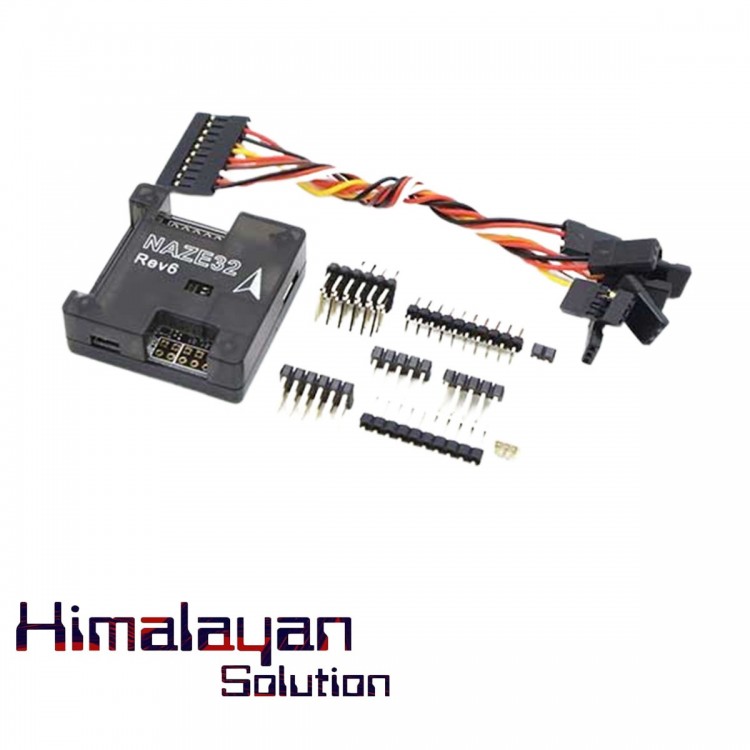

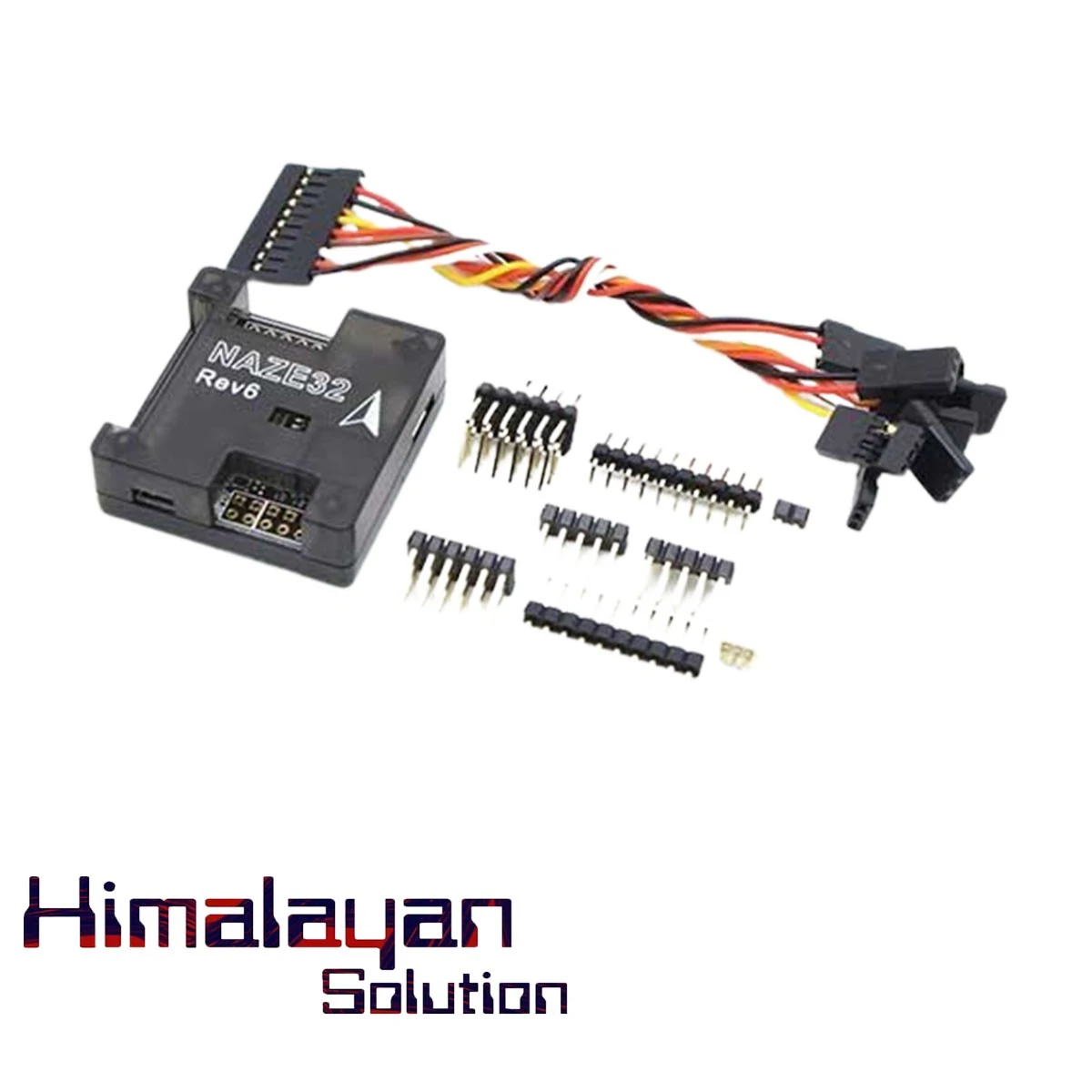

Naze32 Rev6 10DOF Flight Controller

The new NAZE32 REV6, compared REV5 greatly optimized PCB layout, better wiring, and the sensor portion also made a very big evolution, using a new generation of more accurate sensors.

In Category:
  • Drone
  • Availability: In Stock


    • USB on right side
    • PPM / PWM  input as through-Hole
    • 3.3V, I2C on standard-size headers
    • Fully pinout compatible with rev5 accessories (OSDoge etc)
    • SBUS Inverter
    • Spectrum satellite
    • MPU6500
    • Sonar pads w / resistors added for direct connection to 5V sonar
    • All extra pads (FT, GP, A5) on top, only sonar on bottom
    • 16mbit flash
    • Naze 32 Rev 6 - 6 DOF
    • CPU    STM32F103CBT6
    • Maximum Clock Frequency    72 MHz
    • Core    ARM Cortex M3
    • USB to UART    CP2104
    • FLASH    16 MBits
    • Barometric Sensor    BPM280
    • Accelerometer    MPU6500
    • Magnetometers    HMC5983
    • 36 × 36 mm (30.5mm Mounting)
    • 5.3 grams (no headers, 7.3 grams with)
    • 2000 degrees / SECOND 3- axis  MEMS Gyro + Accelerometer (MPU6500)
    • Input voltage: Max 16V on input rail and up to 35V 6s on the voltage sense line
