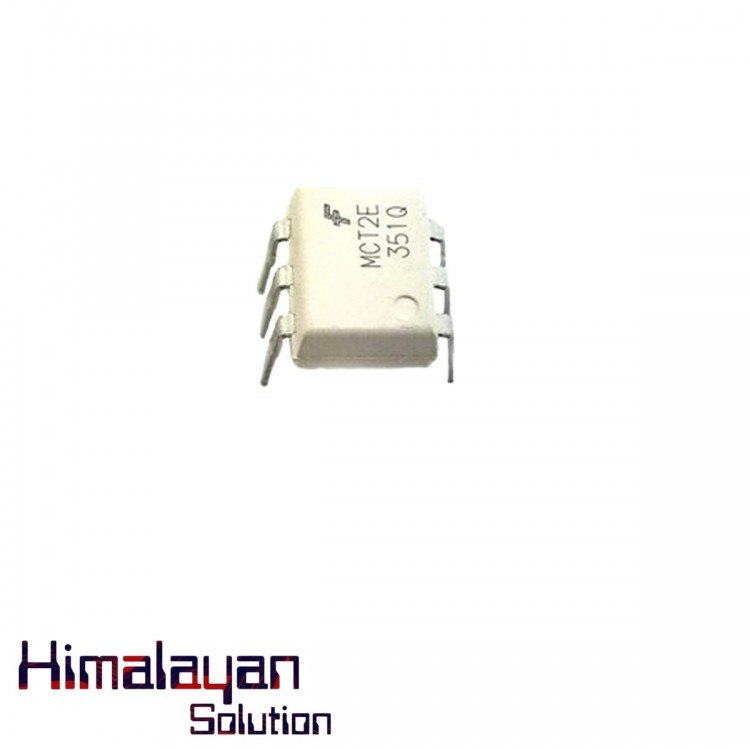

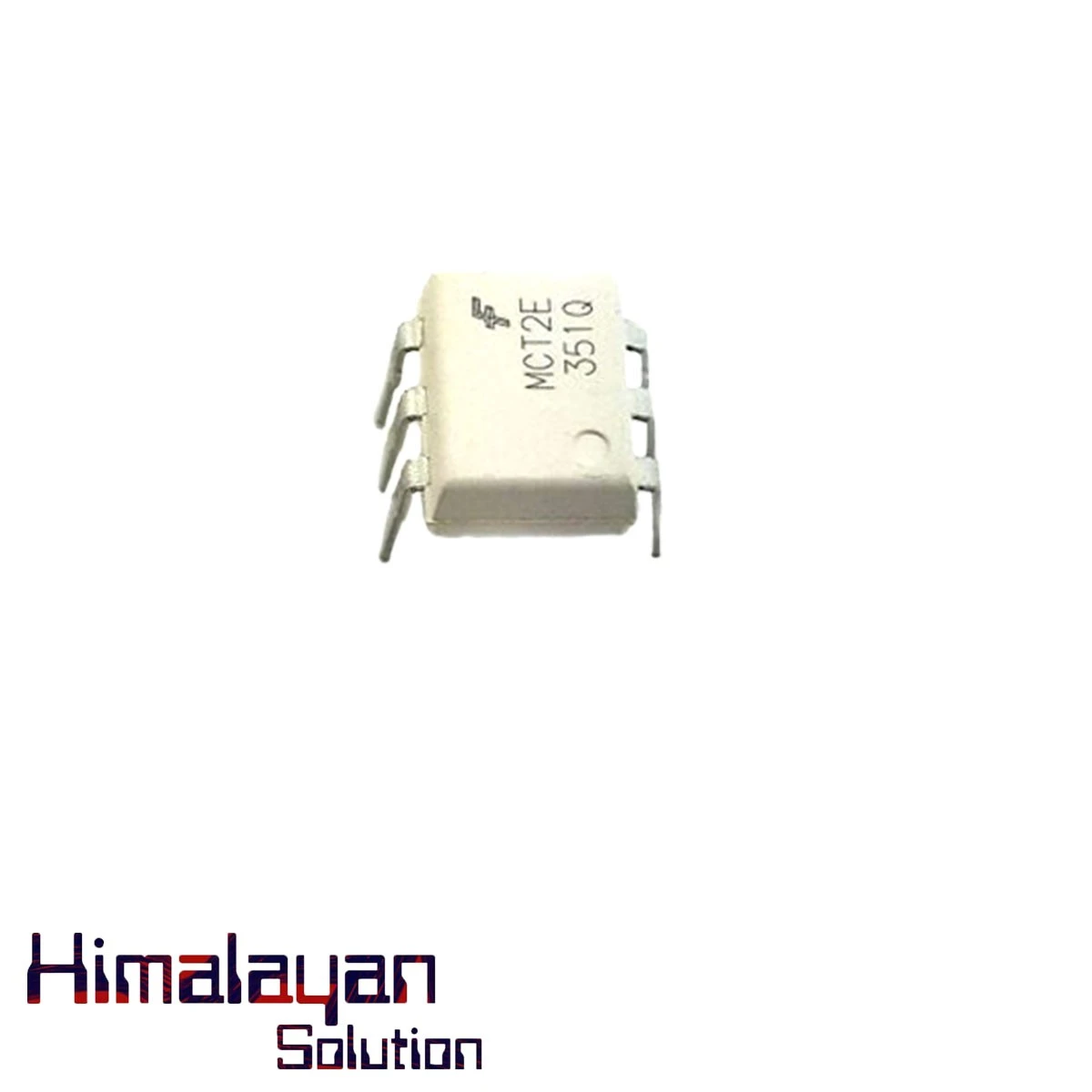

MCT2E iC

0 customer reviews | Add a review

Industry Standard Single Channel Photo transistor

In Category:

Basic Electronics Components

ICS

Availability: In Stock

Email to a Friend

Enquiry

Forward current	60 mA
Power dissipation	150 mW
Reverse Voltage	6 V
Operating Temperature	55 to + 150 °C
Surge current	2.5 A
Collector-emitter breakdown voltage	70 V
Emitter-base breakdown voltage	7 V
Collector current	100 mA

The MCTE is an Industry Standard Single Channel Photo transistor. Each optocoupler consists of gallium arsenide infrared LED and a silicon NPN photo transistor. These couplers are Underwriters Laboratories (UL) listed to comply with a 5300 VRMS isolation test voltage. This isolation performance is accomplished through double molding isolation manufacturing process. Compliance to DIN EN 60747-5-2(VDE0884)/ DIN EN 60747-5-5 pending partial discharge isolation specification is available for these families by ordering option 1. These isolation processes and the ISO 9001 quality program results in the highest isolation performance available for a commercial plastic photo transistor optocoupler.

Applications:-

• AC mains detection

• Reed relay driving

• Switch mode power supply feedback

• Telephone ring detection

• Logic ground isolation

• Logic coupling with high frequency noise rejection
