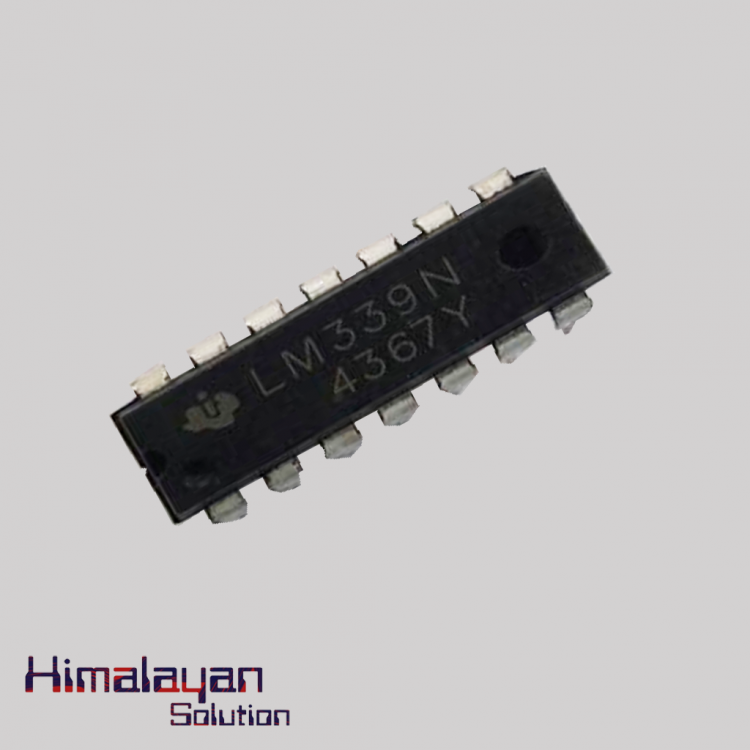

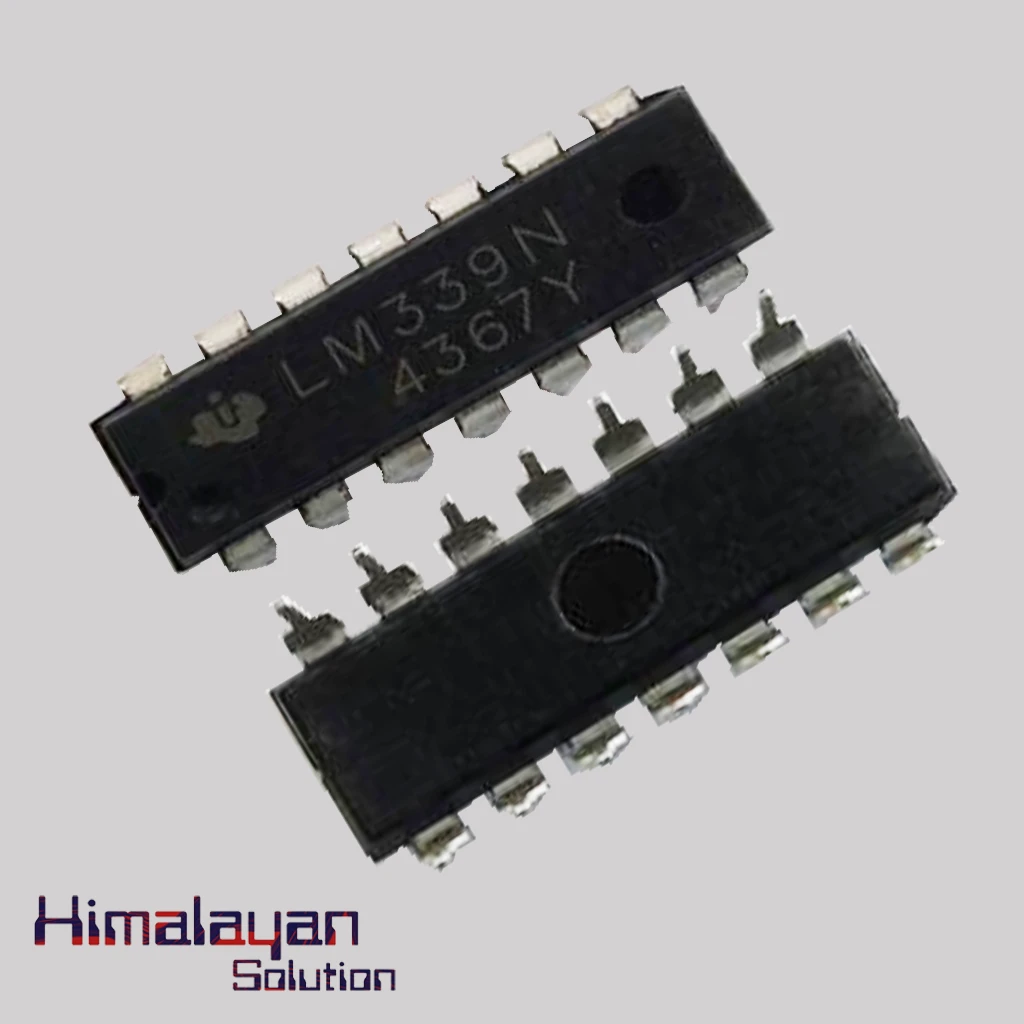

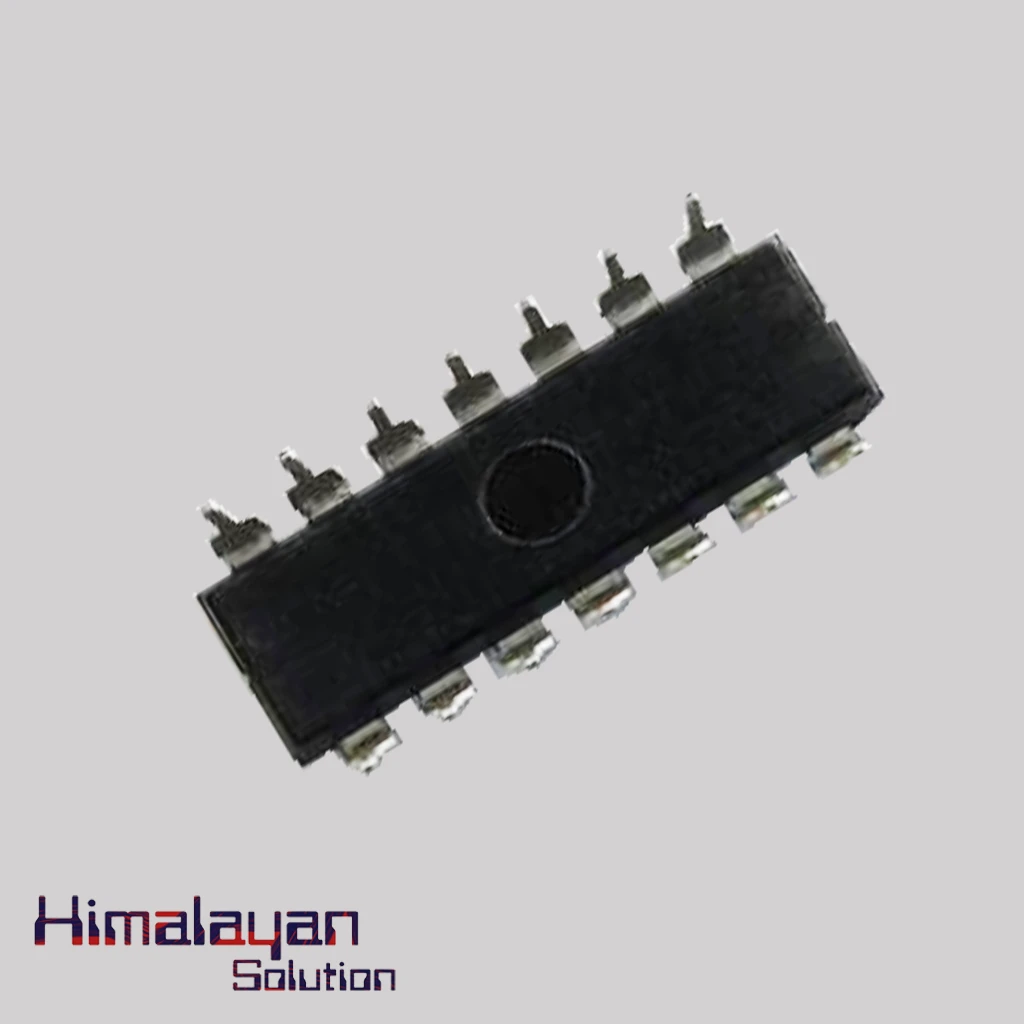

LM 339 IC
The Lm339 operates a wide range of voltage from a single power supply. It has four voltage comparators. The ESD clamps on the input increase reliability without affecting device operation. It is used in level detection, low level sensing and many more.
Availability: In Stock
| Number Of Channels Per Chip | 4 |
| Power Supply Type | Single|Dual |
| Minimum Single Supply Voltage | 3V |
| Maximum Single Supply Voltage | 36V |
| Minimum Dual Supply Voltage | ±1.5V |
| Maximum Dual Supply Voltage | ±18V |
| Maximum Input Bias Current | 0.25uA@5V |
| Maximum Input Offset Voltage | 5mV@5V |
| Maximum Power Dissipation | 1000mW |
| Maximum Supply Current | 2mA@5V |
| Typical Response Time | 1.3us |
| Typical Voltage Gain | 106.02dB |
| Operating Temperature | 0°C ~ 70°C |
| Pin Count | 14 |
| Low Input Bias Current | 25 nA |
| Low Input Offset Current | ±5.0 nA |
