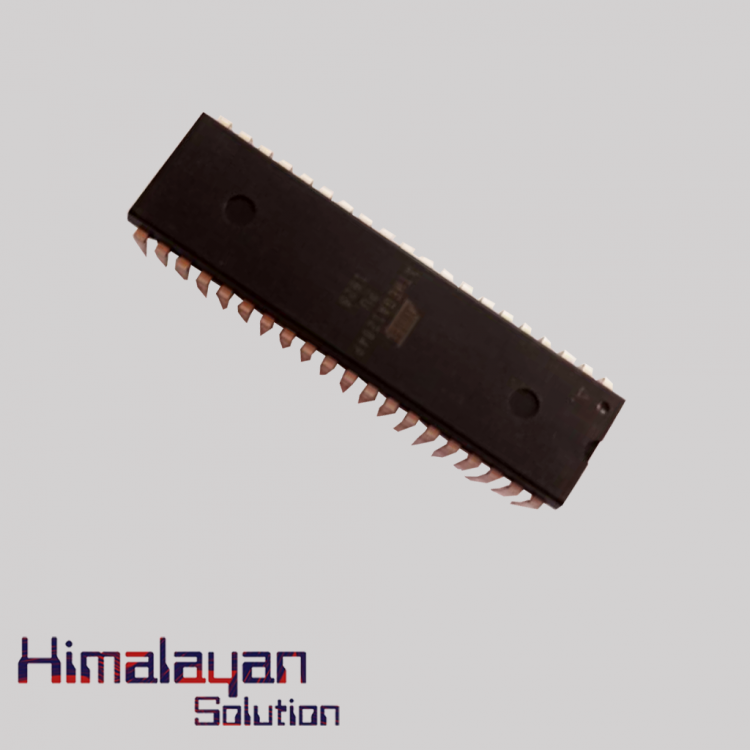

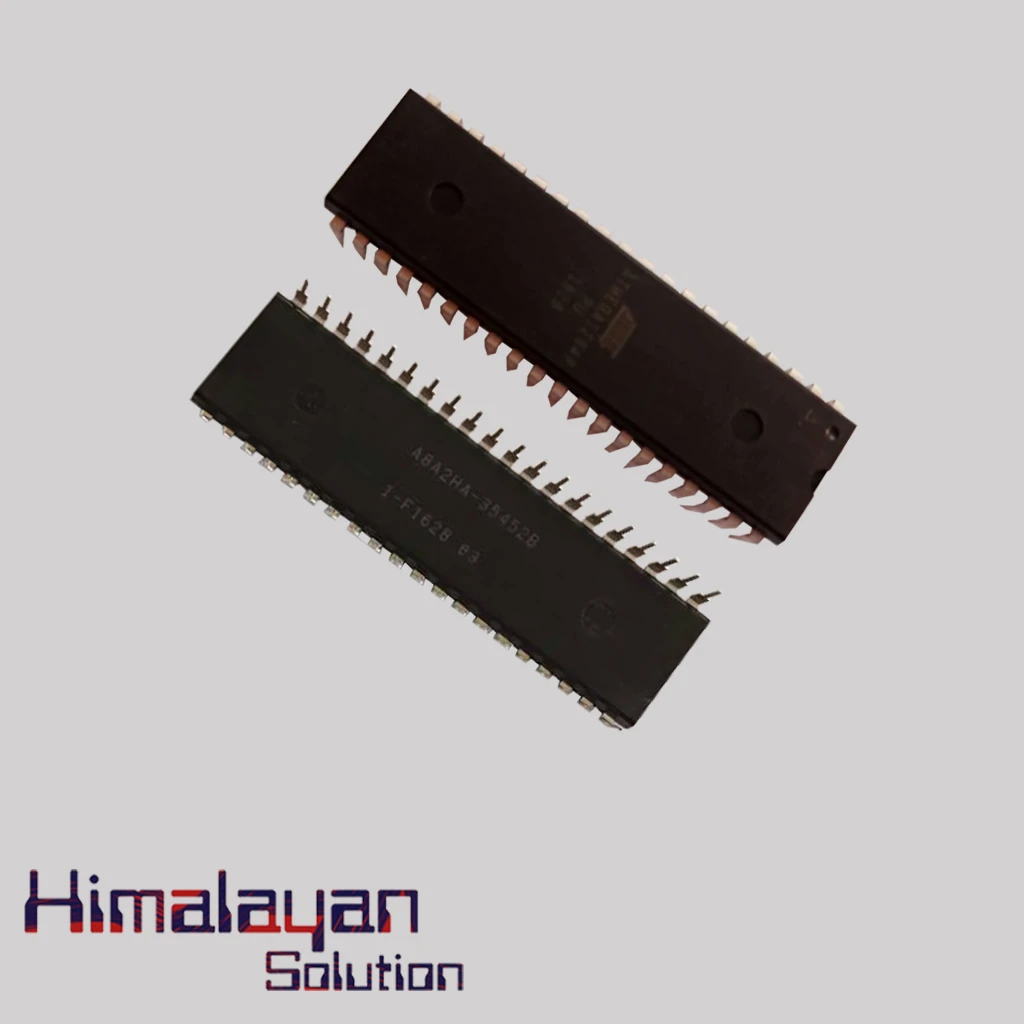

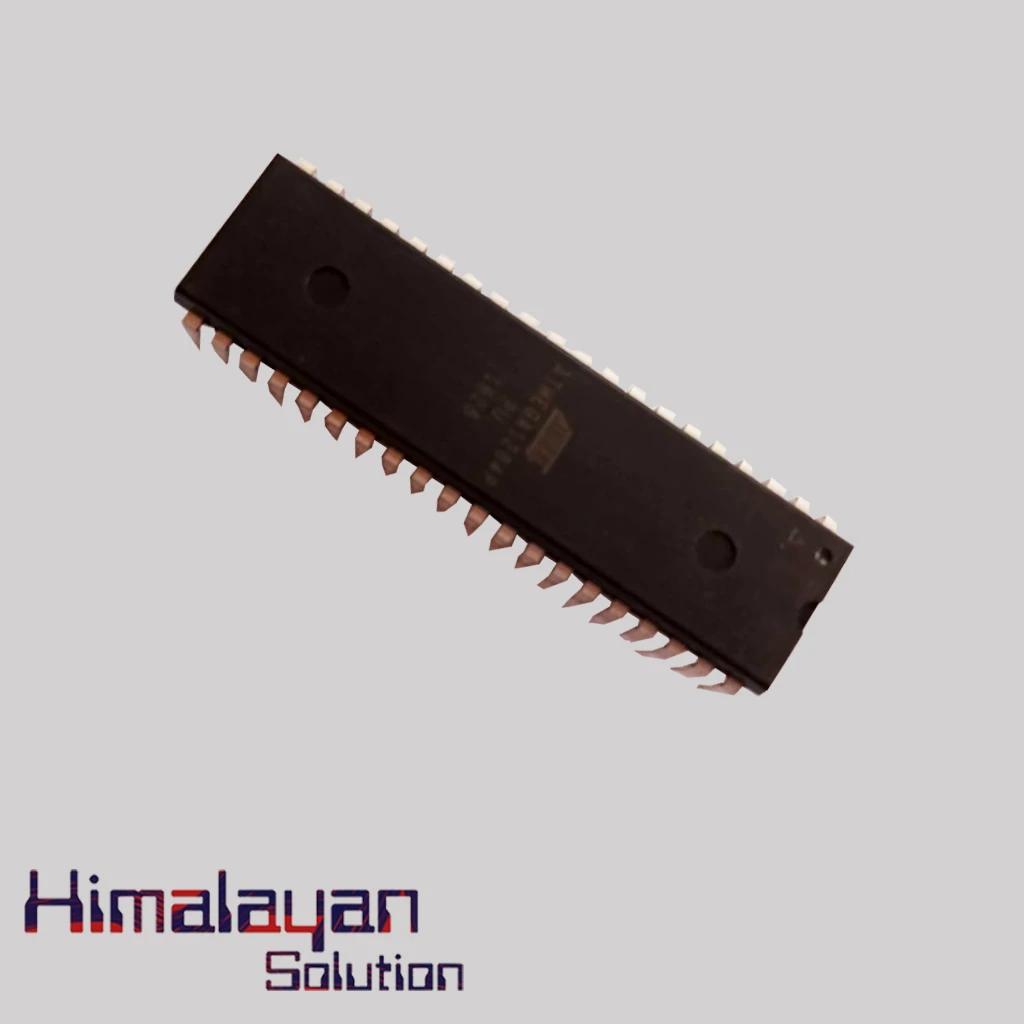

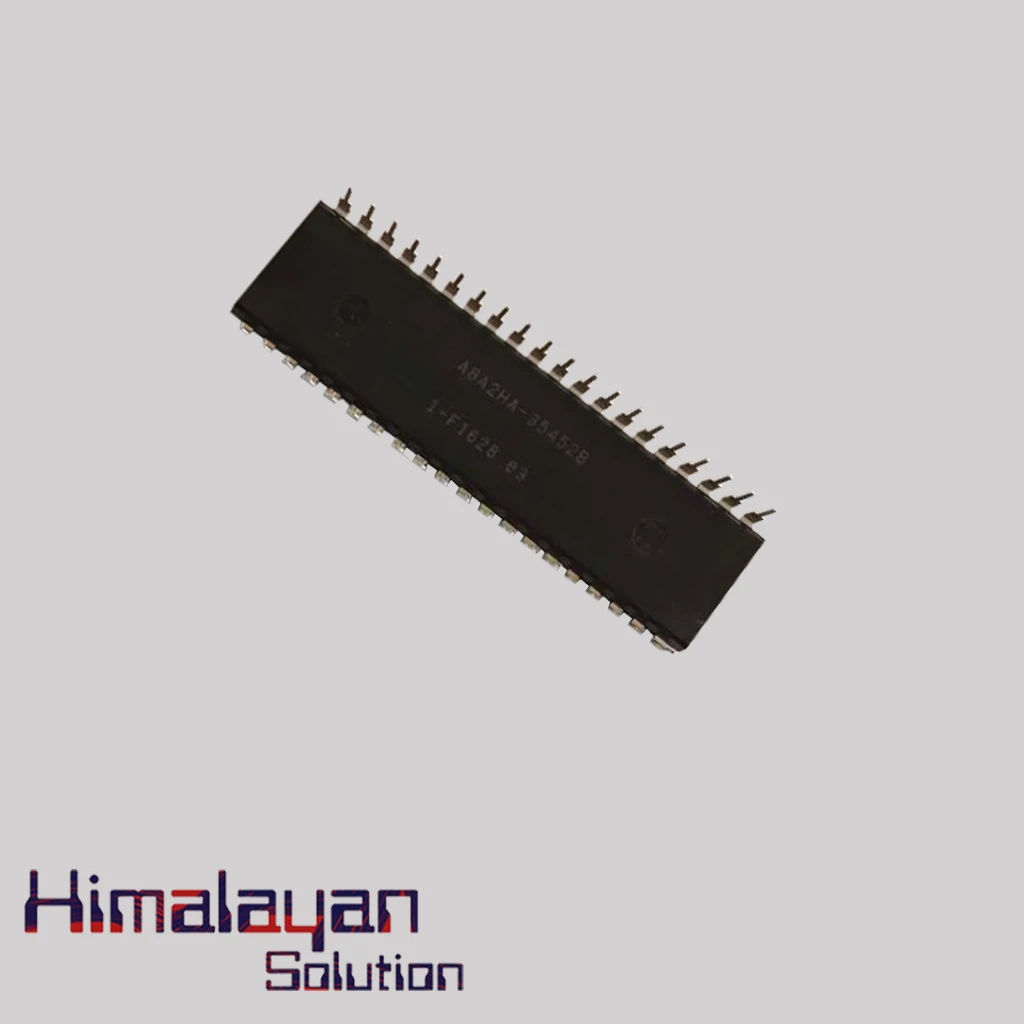

AT Mega1284P IC
The AT Mega1284P IC is a low power 8-bit AVR RISC based microcontroller featuring 128KB of ISP flash, 4KB EEPROM, 16KB SRAM, 131 Powerful instruction, 8-channel 10-bit A/D converter, 32 general purpose I/O lines, 32 general purpose working registers, A real time counter, 3 flexible timer/counters with compare modes and PWM, 2 USARTs, A byte oriented 2-wire serial interface, SPI serial port, A JTAG (IEEE 1149.1 compliant) test interface for on-chip debugging and programming, Six software selectable power saving modes and many more. It can achieve 1 MIPS per MHz with balancing power consumption and processing speed. It can be applicable for various kinds of DIY projects.
Availability: Out Of Stock
| Name | AT Mega1284P IC |
| Program Memory Type | Flash |
| Program Memory Size (KB) | 128 |
| CPU Speed (MIPS/DMIPS) | 20 |
| SRAM Bytes | 16384 |
| Data EEPROM/HEF (bytes) | 4096 |
| Digital Communication Peripherals | 2-UART, 3-SPI, 1-I2C |
| Capture/Compare/PWM Peripherals | 1 Input Capture, 1 CCP, 6PWM |
| Timers | 2 x 8-bit, 2 x 16-bit |
| Number of Comparators | 1 |
| Temperature Range | -40°C To 85°C |
| Operating Voltage Range (V) | 1.8 To 5.5 |
| Pin Count | 44 |
| Low Power | Yes |
