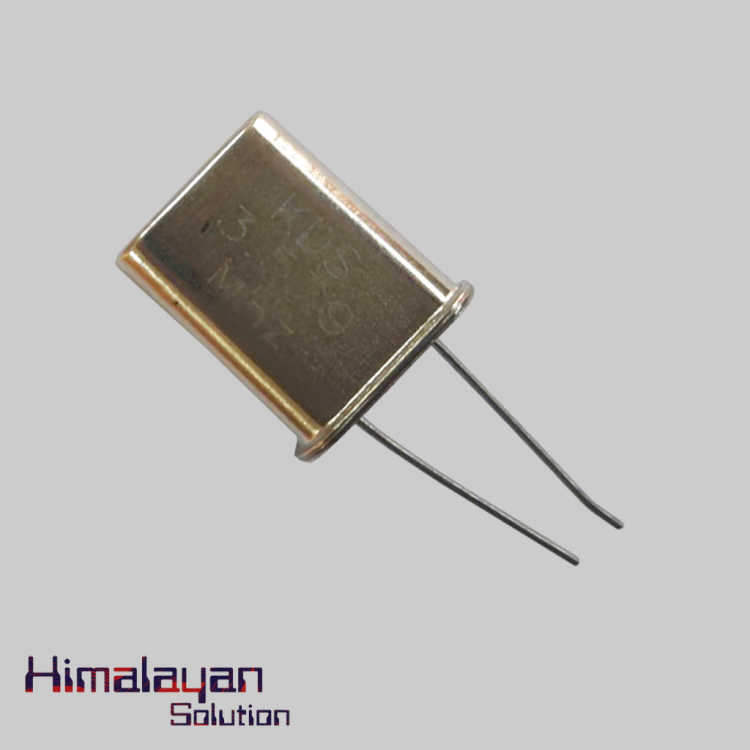

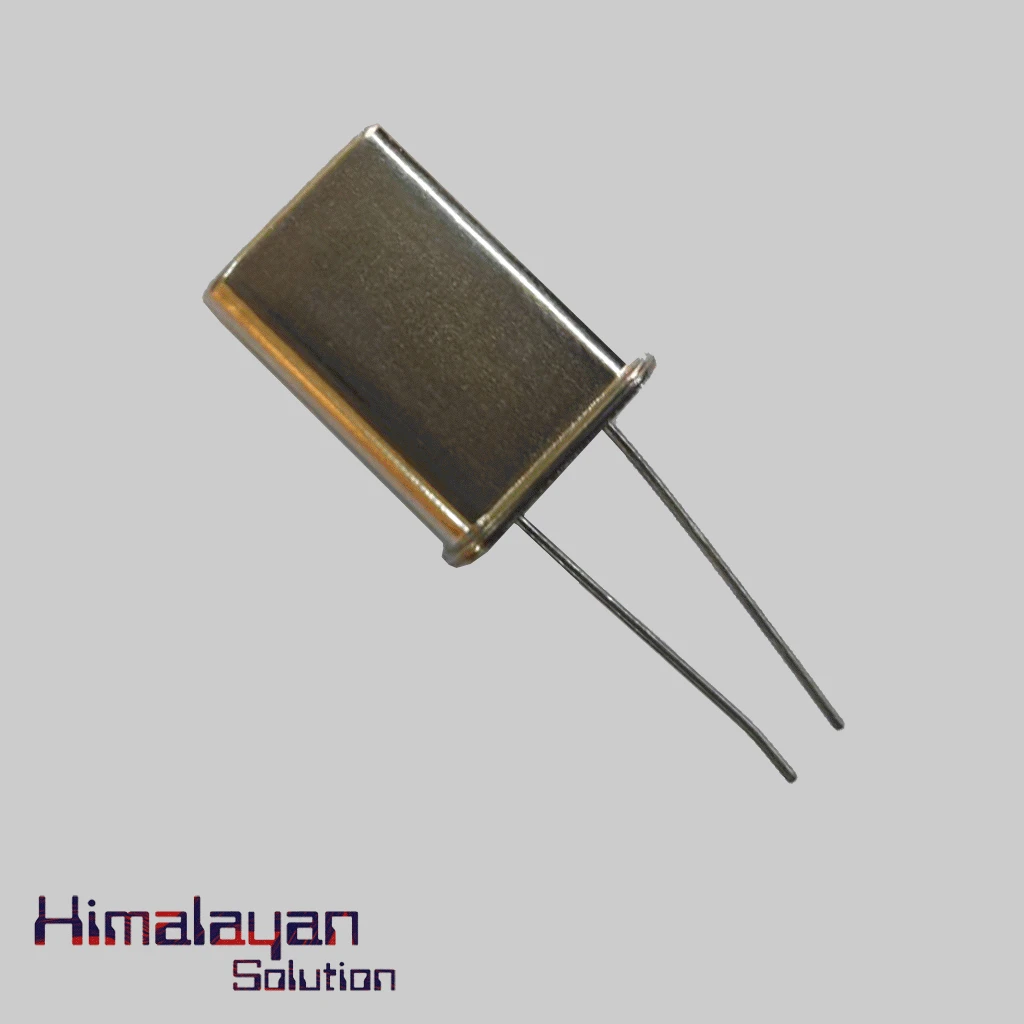

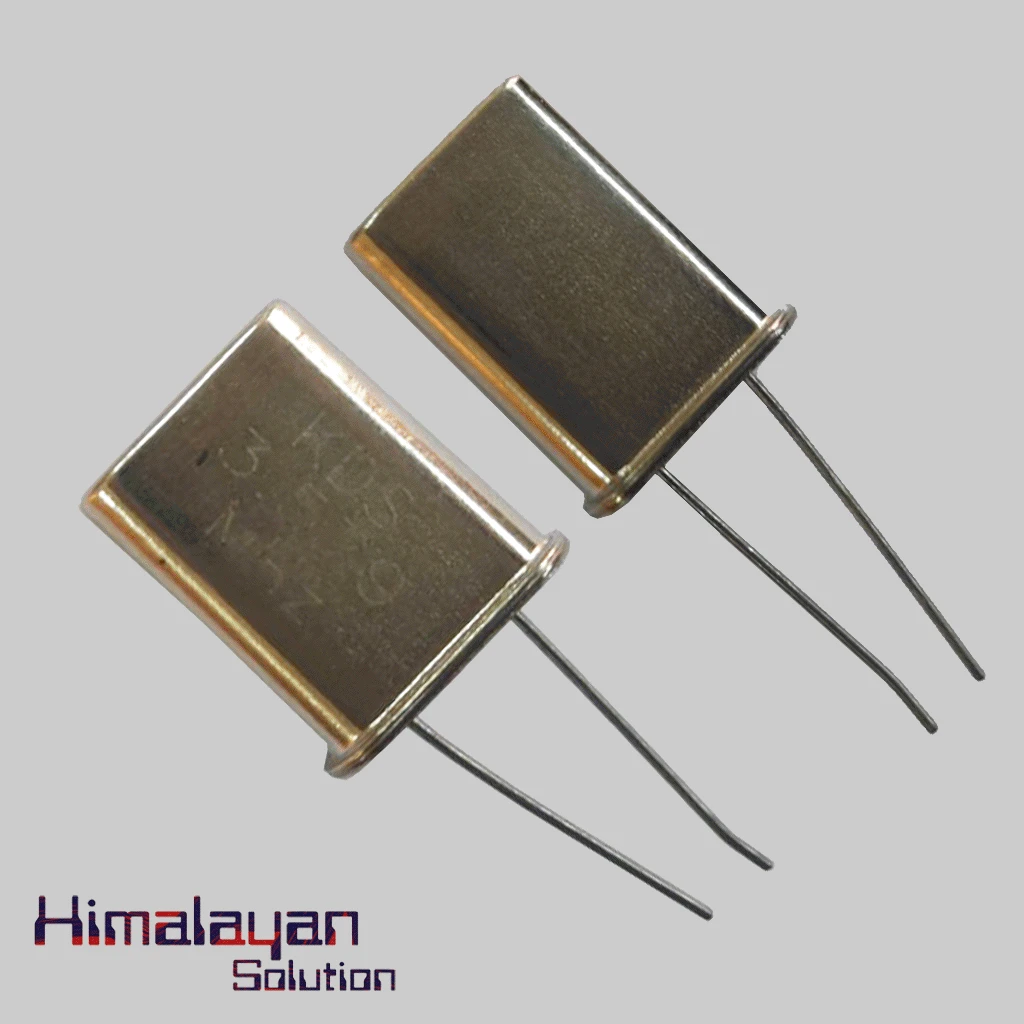

3.579 Mhz Crystal Oscillator
The 3.579MHZ Crystal Oscillator is an oscillator that provides clock pulses of 3.579MHz frequency. It is commonly used to keep track of time, to provide a stable clock signal for digital integrated circuits and to stabilize frequencies for radio transmitters and receivers. It is applicable many applications due to its inexpensive function, for example DTMF generators
Availability: Out Of Stock
| Name | 3.579MHZ Crystal Oscillator |
| Frequency | 3.579 MHz |
| Frequency Calibration Tolerance | ±30ppm @ 25°C |
| Freq. Stability Tolerance | ±50ppm from -10° to +60°C |
| Operating Temperature | -20°C to +70°C |
| Load Capacitance | 30pF |
| Frequency Ageing | ±5 ppm/yr |
