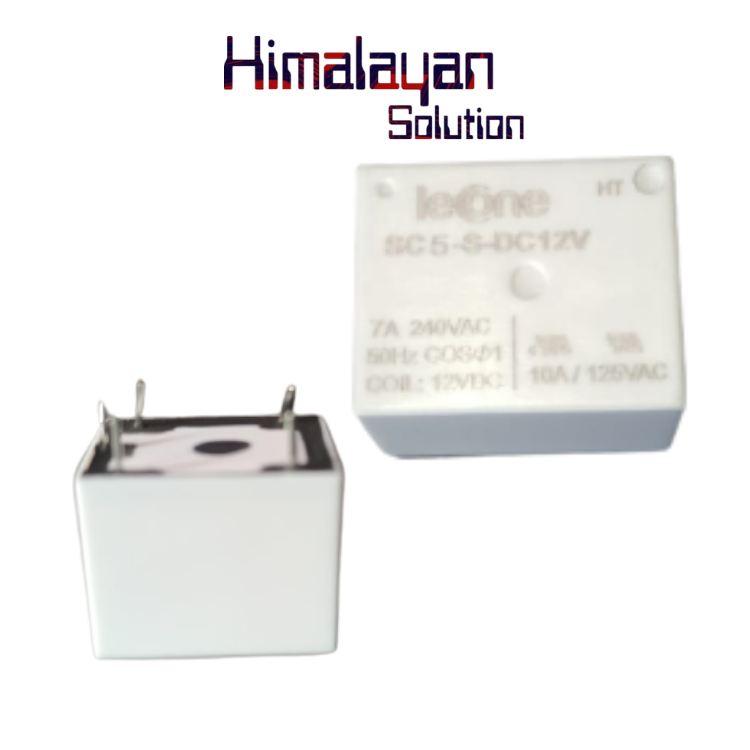

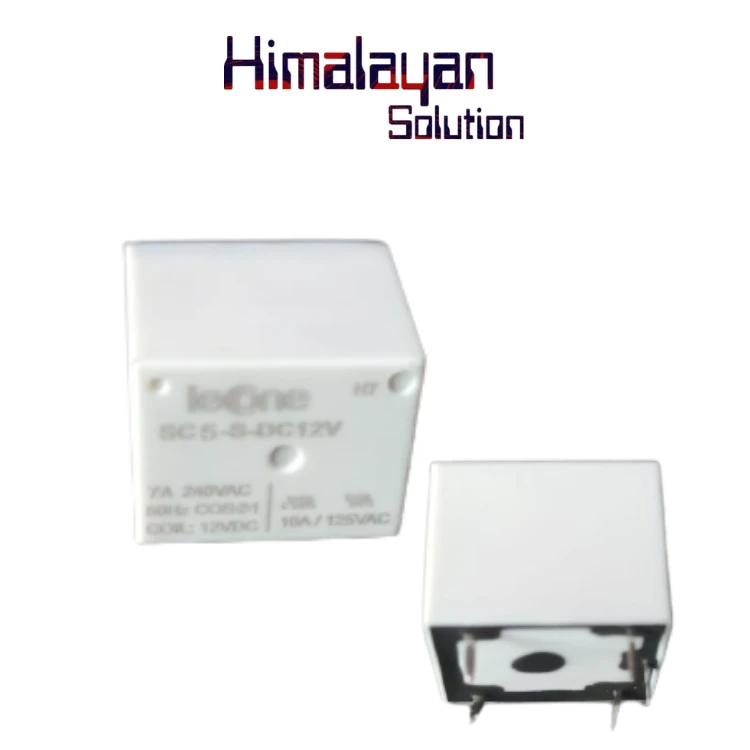

12V Relay
The 12v relay is an electromechanical switching device with a coil rated voltage of 12V and SPDT contacts with a 10A rating. It has 5 pins with simple magnetic circuit has long operational life. It can be used as remote control TV receiver, monitor display and many more. It is UL, CUL, TUV recognized.
Availability: In Stock
| Max Current | 5A AC/DC (Max) |
| Max Switching Voltage | 110VDC / 250VAC |
| Nominal Voltage | 12V |
| Coil Resistance | 270Ω |
| Coil Current | 44.4Ma |
| Operating Voltage | 4.5 to 25V |
| Pins | 5 |
| Max Switching Current | 10A |
| Rated Load | 10A 250VAC, 10A 30VDC |
| Coil Power | 0.45W |
| Contact Arrangement | C:1 (NO/NC) |
| Size | 19 x 15 x 15 mm |
