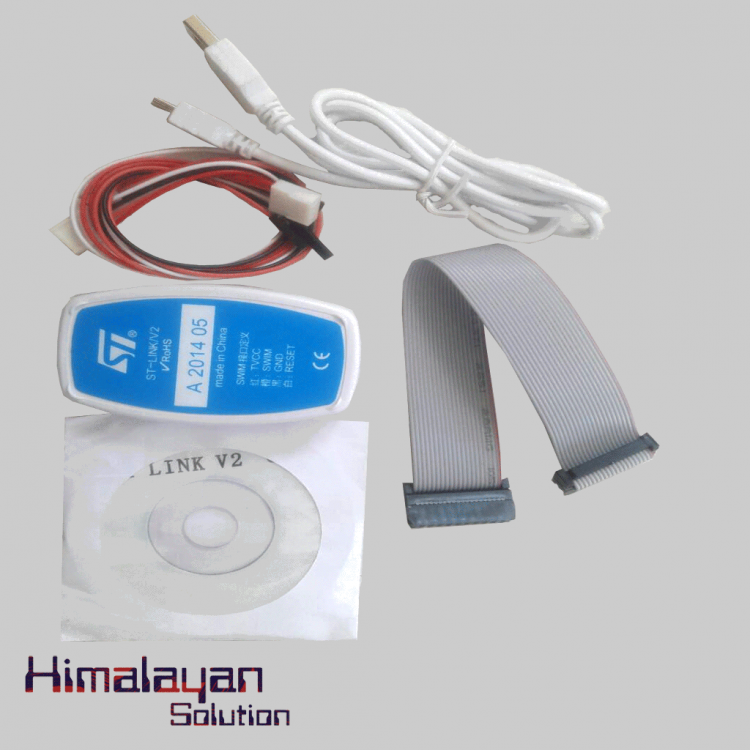

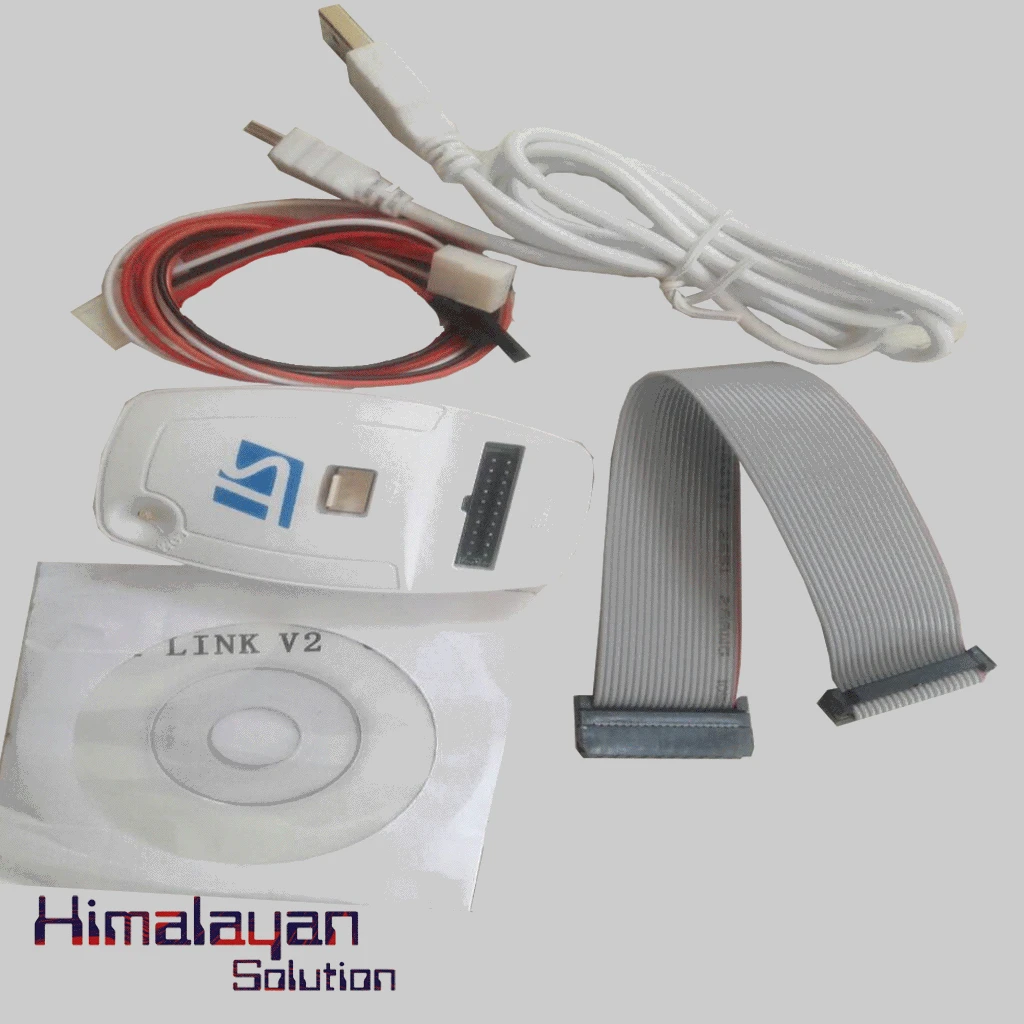

ST-LINK/V2 (Debugging and Programming)

The ST-LINK/V2 is an in-circuit debugging and programming for the microcontroller families STM8 and STM32 . The single wire interface module (SWIM) and JTAG/serial wire debugging (SWD) interfaces are used.  To communicate with any STM8 or STM32 microcontroller located on an application board the SWIM (single wire interface module)  and SWD (JTAG/serial wire debugging interfaces) are used. It has a direct firmware update feature supported as well as status LED which blinks during communication with the PC. It has USB 2.0 full speed compatible interface.

In Category:
  • Basic Electronics Components
  • modules
  • Kits
  • Development board and tools
  • Availability: Out Of Stock

    Power Supplied  5 V
    Cable USB Standard A to Mini- B
    Operating Temperature 0 to 50 °C
    Core ARM, STM8
    Data Bus Width 8 bit
    Interface Type JTAG, USB
    Application Voltage (SWIM) 1.65 V to 5.5 V
    Application Voltage (SWD) 1.65 V to 3.6 V
    Programming-Speed Rate (Low Speed) (SWIM) 9.7 Kbytes/s
    Programming-Speed Rate (High Speed) (SWIM) 12.8 Kbytes/s
    Pitch Connector (SWIM) 2.54 mm
