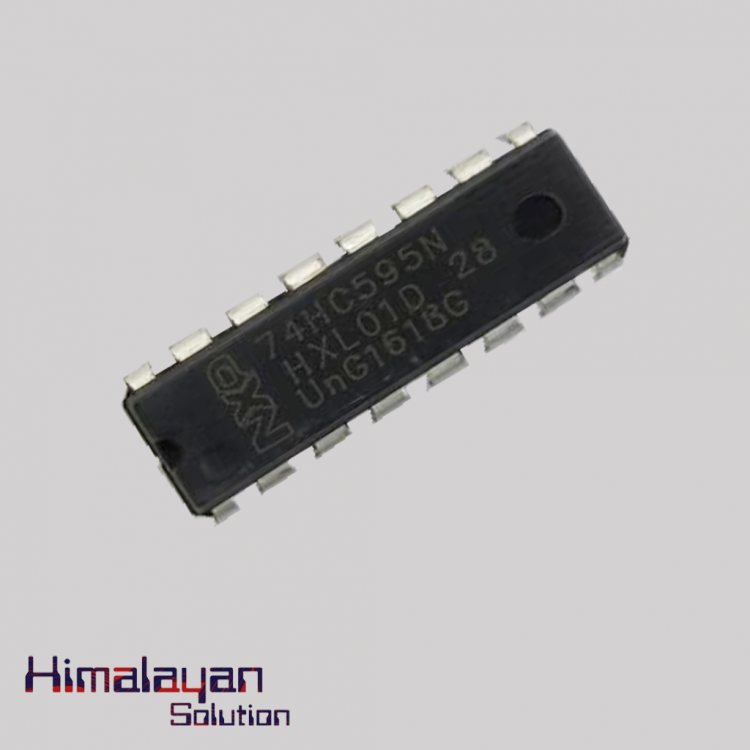

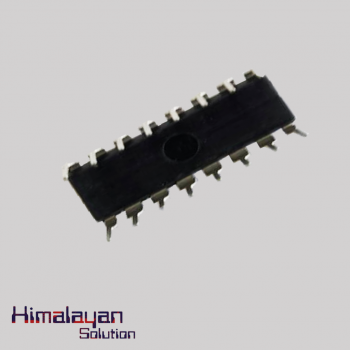

74HC595 IC

 The 74HC595 IC has 8 bit serial input with 8 bit serial or parallel output. IT ha storage register with 3 state outputs. It is used in serial to parallel data conversion, remote control holding register, network switches, led display and many more. The shift register clock and the storage register clock are positive edge triggered. The shift register is always one clock pulse ahead of the storage register is both the clock are connected together.

In Category:
  • Basic Electronics Components
  • ICS
  • Availability: In Stock

    Manufacturer NXP
    Package / Case 16-DIP (0.300", 7.62mm)
    Output Type Standard
    Number Of Elements 1
    Voltage Supply 2 V ~ 6 V
    Mounting Type Through Hole
    Number Of Circuits 1
    Propagation Delay Time  285ns
    Logic Type Shift Register
    Function Serial To Parallel
    Number Of Bits Per Element 8
    Operating Temperature -40°C ~ 125°C
    Counting Sequence Serial To Serial/Parallel
    Output Type 3-State
    Operating Supply Voltage 2 V to 6 V
