Arduino Leonardo

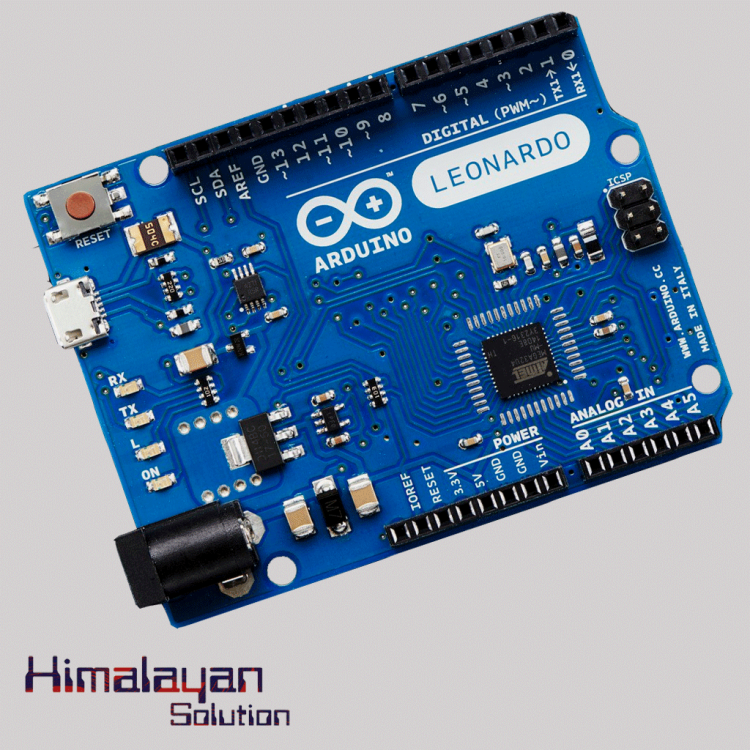

The Arduino Leonardo is a microcontroller board based on the ATmega32u4 that includes 20 digital input/output pins where 7 can be used as PWM outputs and 12 as analog inputs , a 16 MHz crystal oscillator, a micro USB connection, a power jack, an ICSP header, and a reset button. We can simply connect it to a computer with a USB cable or power it with a AC-to-DC adapter or battery to operate . The Leonardo has built-in USB communication that eliminating the need for a secondary processor. This allows the Leonardo to appear to a connected computer as a mouse and keyboard. The drivers are automatically installed plugging with an USB cable to the PC. The software can be found in the official site .
Availability: In Stock
| Microcontroller | ATmega32u4 |
| Operating Voltage | 5V |
| Input Voltage (Recommended) | 7-12V |
| Input Voltage (Limits) | 6-20V |
| Digital I/O Pins | 20 |
| PWM Channels | 7 |
| Analog Input Channels | 12 |
| DC Current Per I/O Pin | 40 mA |
| DC Current for 3.3V Pin | 50 mA |
| Flash Memory | 32 KB (ATmega32u4) |
| SRAM | 2.5 KB (ATmega32u4) |
| EEPROM | 1 KB (ATmega32u4) |
| Clock Speed | 16 MHz |
| Length | 68.6 mm |
| Width | 53.3 mm |
| Weight | 20 g |
