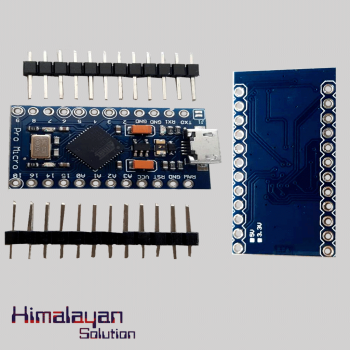

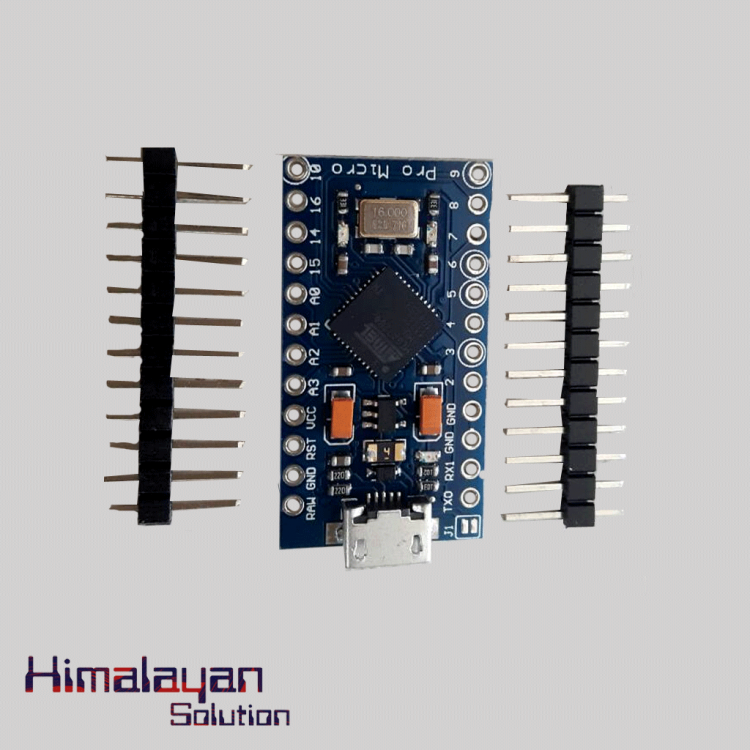

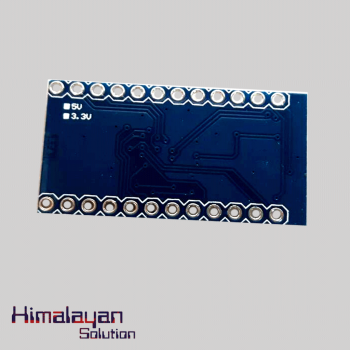

Arduino Pro Micro
Arduino Pro Micro Usb is an ATmega32U4 board running at 5V/16MHz. It is the smallest Arduino –Compatible board. It has high speed PWM with programmable and resolution from 2-11bits.it is Supported under Arduino IDE v1.0.1. it can accept voltage up to 12VDC. It has USB connectivity on-board and on board power and status LEDs.
Availability: In Stock
| Microcontroller | ATMEGA32U4 |
| RAW | 4V-16V |
| VCC | 3.3V at 500 mA |
| Digital I/O Pins | 12 |
| Analog Input Pins | 4 |
| Maximum Current for Chip | 200mA |
| Maximum Current Per Pin | 40mA |
| Flash Program Memory | 32kB |
| EEPROM | 1kB |
| ADC | 10-bit |
| PWM | 8bit |
| Clock Speed | 16MHz |
| Size | 1.3×0.7″ |
