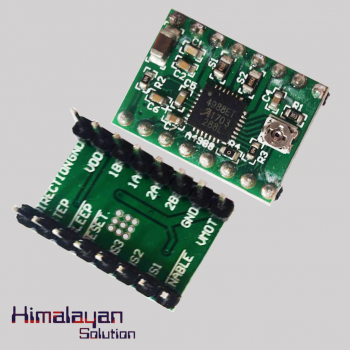

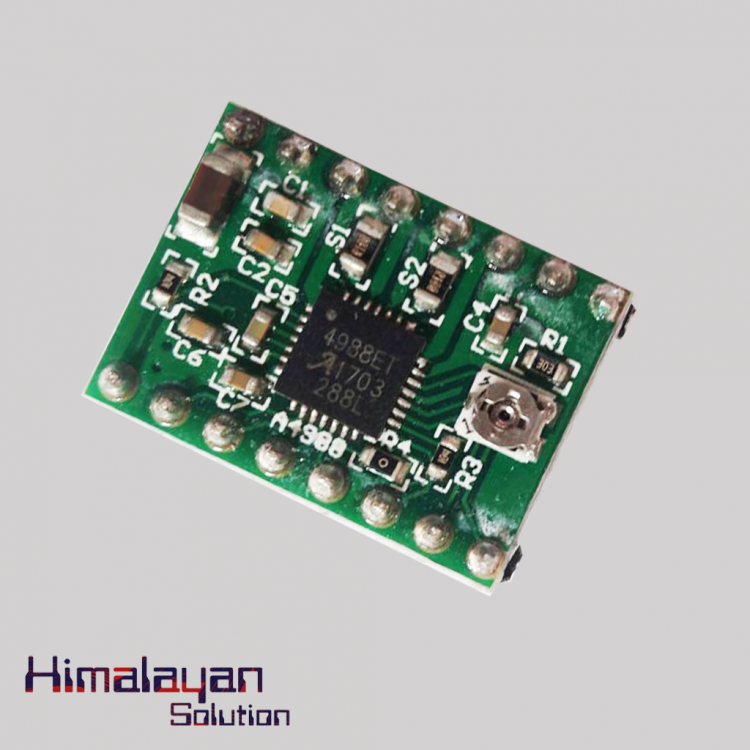

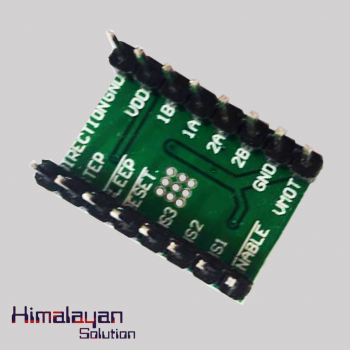

A4988 Stepper Driver
The A4988 Stepper Motor Driver Carrier is a breakout board for Allegro’s A4988 microstepping bipolar stepper motor driver that has the features of adjustable current limiting, over current and over temperature protection. It operates from 8 V to 35 V. It can be applicable for various DIY projects.
Availability: In Stock
| Name | A4988 Stepper Motor Driver Carrier |
| Load Supply Voltage | 35V |
| Output Current | ±2 A |
| Logic Input Voltage | –0.3 to 5.5V |
| Logic Supply Voltage | –0.3 to 5.5V |
| Motor Outputs Voltage | –2.0 to 37V |
| Sense Voltage | –0.5 to 0.5V |
| Reference Voltage | 5.5V |
| Operating Ambient Temperature | –20 to 85 ºC |
| Maximum Junction | 150 ºC |
| Storage Temperature | –55 to 150 ºC |
