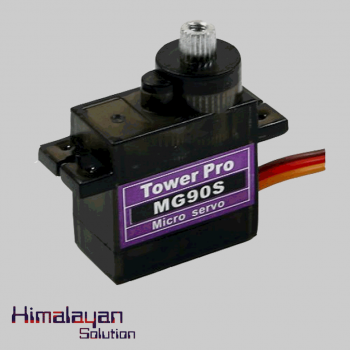

MG90S Servo Motor Gear

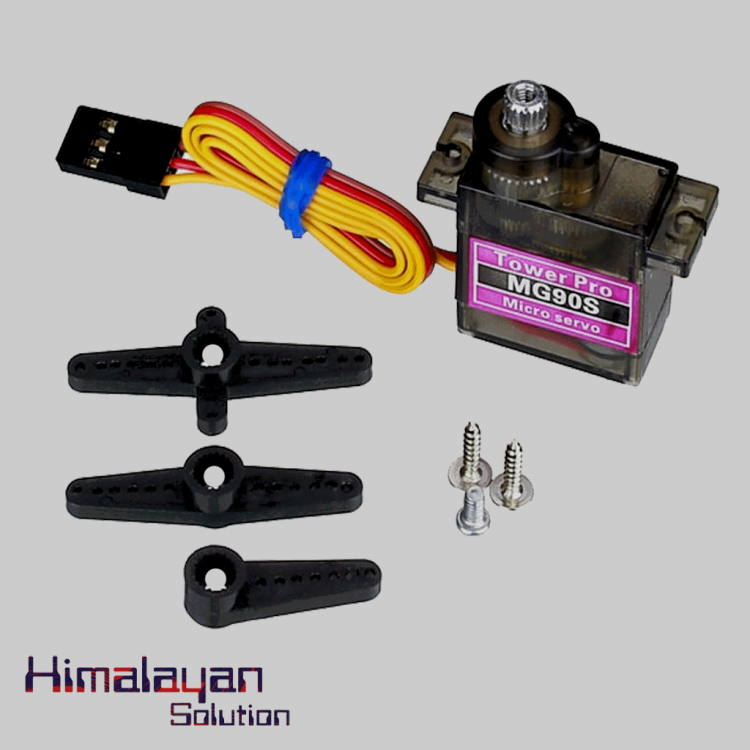

The MG90s servo is a gear that is perfect for high-end application. It can rotate approximately 180 degrees.It comes with with 3 arms and screws and with pre-soldered female wires with over torque protection for durability . The PWM (Signal) is Orange , VCC (Power) is Red , GND (Ground) is Brown . It can be used for making spider robot, biped robot etc
Availability: Out Of Stock
| Model Number | MG90S Servo |
| Material | Plastic |
| Gear Type | Metal |
| Operating Voltage | 4.8 - 6.0 V |
| Stall torque (4.8V) | 1.8kg/cm |
| Stall torque (6.6V) | 2.2kg/cm |
| Operating speed (4.8V) | 0.10sec/60degree |
| Operating speed (6.0V) | 0.08sec/60degree |
| Temperature Range | -30 to +60 Degree C |
| Dead Band width | 5us |
| Servo Wire Length | 25 cm |
| Color | Black |
| Rotation/Support | Dual Bearings |
| Rated Voltage | 5 V DC |
| Weight | 13.4g |
| Size | 22.8 x 12.2 x 28.5mm |
