ST-LINK/V2 (Debugging and Programming)

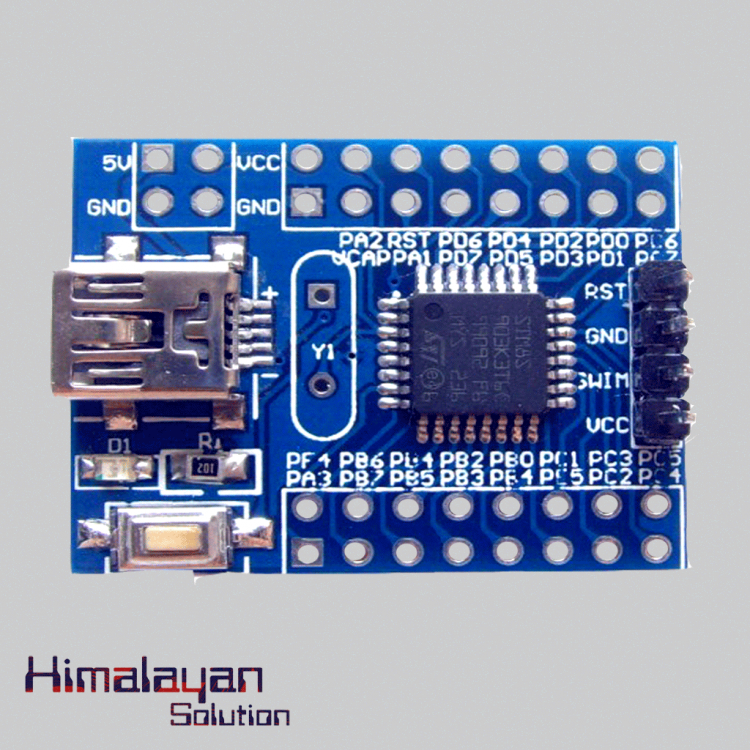

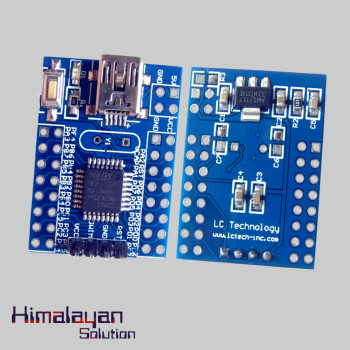

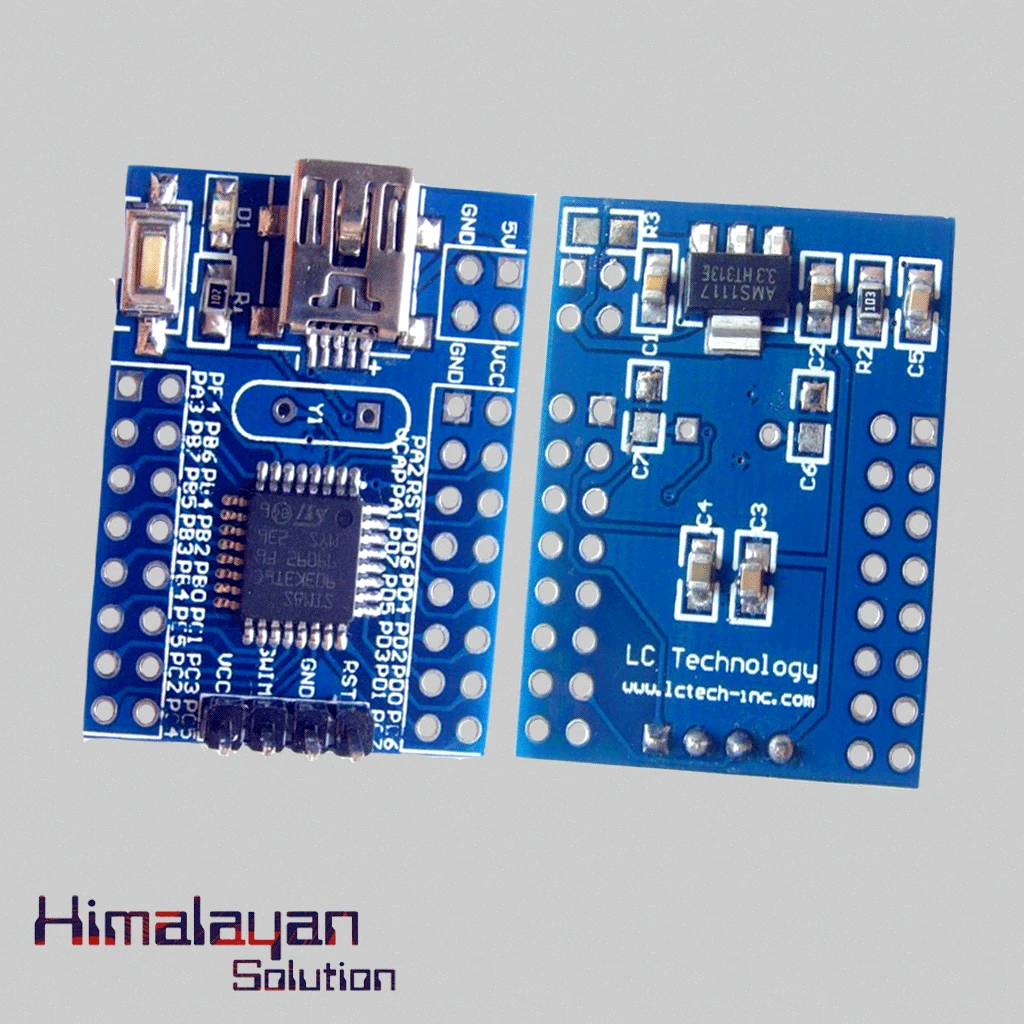

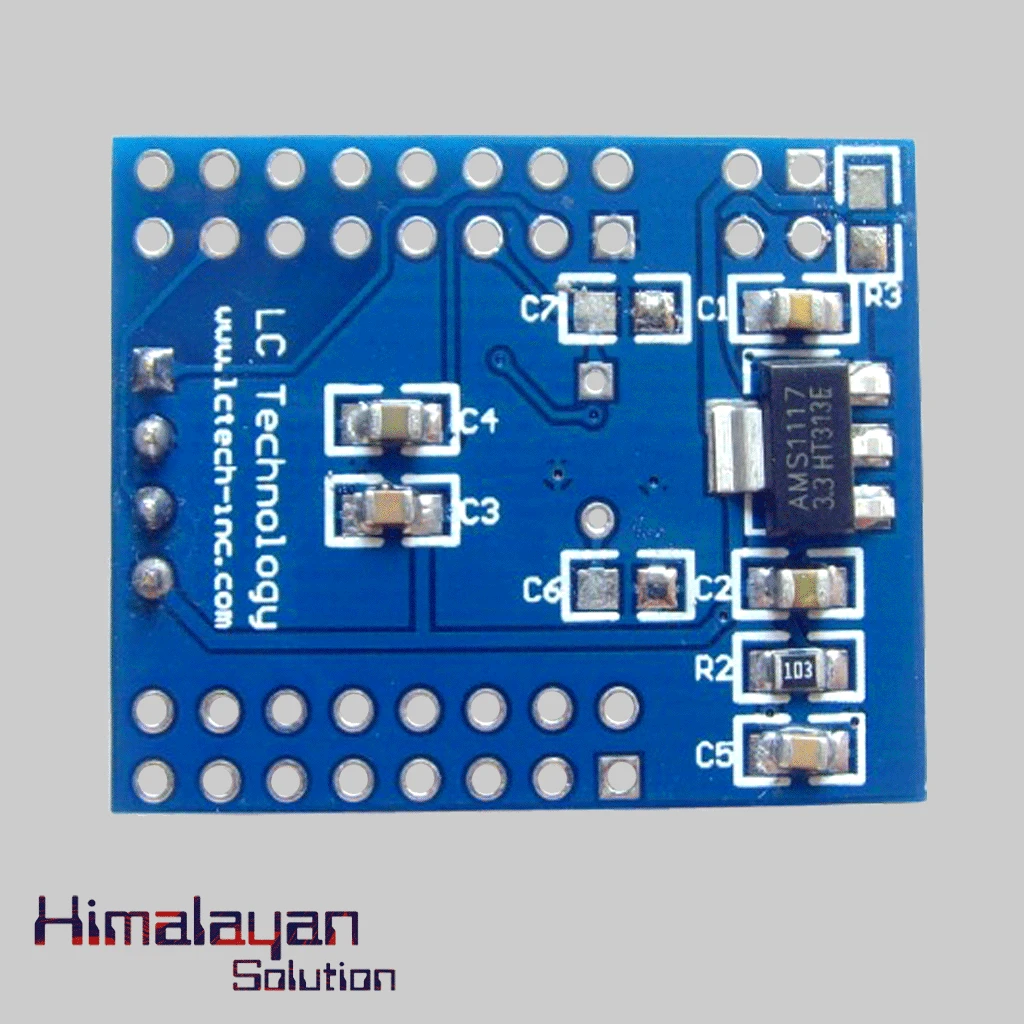

STM 8 Development Board

 STM 8 Development Board is a very useful Development Board Module that uses STM8S103F3P6 as microcontroller. This Module is very suitable for learners for learning STM 8S microcontroller. It has various features like: - Directly plugged onto the MB102 breadboard, On-board SWIM interface, Programmed with ST-LINK V2, On-board reset button & power indicator LED, On-board test indicator LED & the beginners can program to control it, On-board 200ma 3.3V Regulator and many more. It can be suitable for various applications like: - Power supply, Analog-to-digital converter (ADC), Clock management, Reset control and development, Debugging tool support, STM8 software tool chain and many more.

In Category:
  • Development board and tools
  • Availability: In Stock

    Name STM8 Development Board
    Operating Voltage 3.3 V
    IO Logic Voltage 3.3 V
    Digital I/O Pins 16
    Analog Input Pins 5
    Flash Memory 8 KB
    RAM 1 KB
    EEPROM 640 B
    Programmable Clock Speed 16 MHz (MAX)
    Microcontroller STM8S103F3P6
    Burning Times 10 k cycles
    Form Color Blue + Black
    Material PCB + Alloy
    Dimensions 1.14 in x 0.71 in x 0.71 in (2.9 cm x 1.8 cm x 1.8 cm)
    Weight 0.13 oz (3.6 g)
