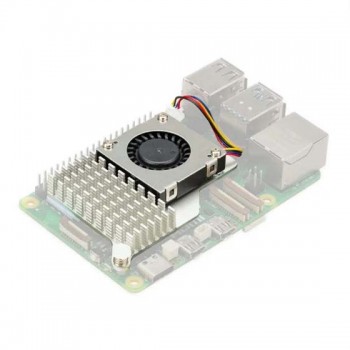

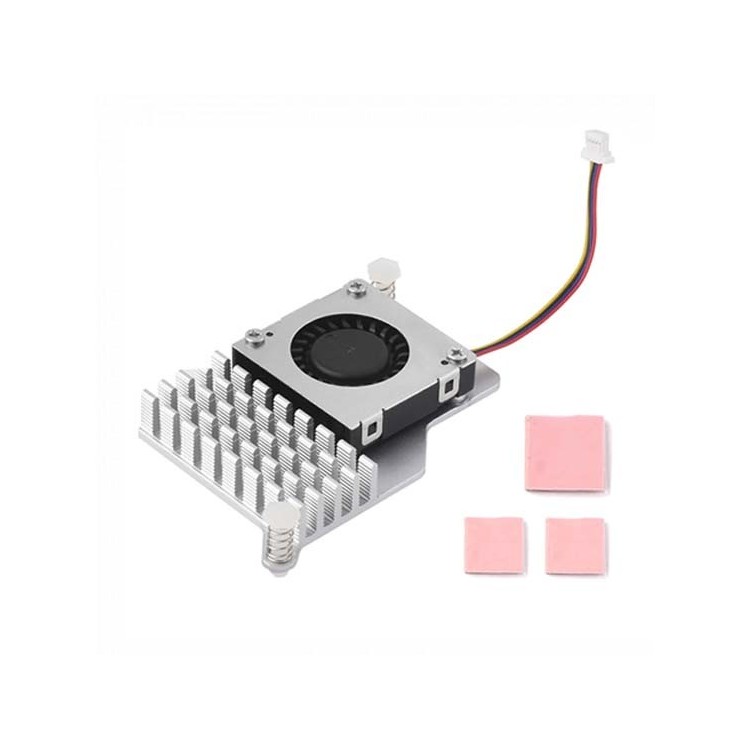

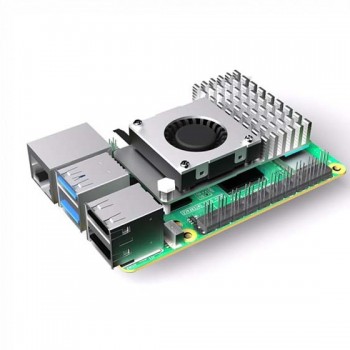

Active Cooler for Raspberry Pi 5, Temperature-controlled Blower Fan, Aluminium Heatsink, With Thermal Tapes
The Active Cooling Fan with Aluminium Heatsink is designed for the Raspberry Pi 5 (4GB/8GB), featuring a temperature-controlled blower fan and anodized aluminium heatsink for efficient heat dissipation. It supports 5V DC input via a 4-pin fan header, offers PWM fan speed control with a tachometer, and operates at 8000 ± 10% RPM with a maximum airflow of 1.39 CFM. Easy to install with thermal pads and spring-loaded push pins, it ensures effective cooling for the Raspberry Pi 5.
Availability: In Stock
| Input voltage | 5V DC (supplied via four-pin fan header on Raspberry Pi 5) |
| Fan speed control | Pulse width modulation control with tachometer |
| Maximum airflow | 1.39 CFM |
| Fan speed | 8000±10%RPM |
| Material | Anodised aluminium |
| Color | Silver |
-
Compatible with Raspberry Pi 5 ---This Active Cooling Fan, Aluminium Heatsink is only designed for Raspberry Pi 5 4GB/8GB.
-
Combines A Temperature-Controlled Blower Fan with an aluminium heatsink to accelerate heat dissipation
-

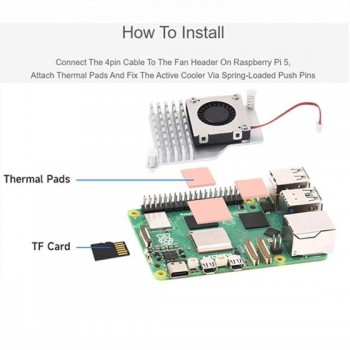

Easy to install: Connect the 4pin cable to the fan header on Raspberry Pi 5, attach thermal pads and fix the Active Cooler Via Spring-Loaded Push Pins
-
Input voltage: 5V DC (supplied via four-pin fan header on Raspberry Pi 5)
-
Fan speed control: Pulse width modulation control with tachometer. Fan speed: 8000±10%RPM
FAQs
-
Q: Is this cooling fan compatible with other Raspberry Pi models?
A: No, this cooling fan is specifically designed for the Raspberry Pi 5 (4GB/8GB) and is not compatible with other models. -
Q: How do I install the cooling fan on my Raspberry Pi 5?
A: Simply connect the 4-pin cable to the fan header on the Raspberry Pi 5, attach the provided thermal pads, and secure the fan using the spring-loaded push pins. -
Q: What is the input voltage required for the fan?
A: The fan requires a 5V DC input, supplied via the four-pin fan header on the Raspberry Pi 5. -
Q: Can I control the fan speed?
A: Yes, the fan speed is controlled via Pulse Width Modulation (PWM) with a tachometer for precise speed management. -
Q: What is the fan speed and airflow capacity?
A: The fan operates at a speed of 8000 ± 10% RPM with a maximum airflow of 1.39 CFM. -
Q: What material is the heatsink made from?
A: The heatsink is made from anodized aluminium, which ensures efficient heat dissipation. -
Q: Is additional software required to use this cooling fan?
A: No additional software is required; the fan is plug-and-play and controlled directly by the Raspberry Pi 5. -
Q: Does the fan make a lot of noise?
A: The fan is designed to operate quietly while providing effective cooling, but the noise level may vary slightly depending on the speed. -
Q: Does the package include thermal pads?
A: Yes, the package includes thermal pads for easy installation and optimal heat transfer.
No, this cooling fan is specifically designed for the Raspberry Pi 5 (4GB/8GB) and is not compatible with other models.
Simply connect the 4-pin cable to the fan header on the Raspberry Pi 5, attach the provided thermal pads, and secure the fan using the spring-loaded push pins.
The fan requires a 5V DC input, supplied via the four-pin fan header on the Raspberry Pi 5.
Yes, the fan speed is controlled via Pulse Width Modulation (PWM) with a tachometer for precise speed management.
The fan operates at a speed of 8000 ± 10% RPM with a maximum airflow of 1.39 CFM.
The heatsink is made from anodized aluminium, which ensures efficient heat dissipation.
No additional software is required; the fan is plug-and-play and controlled directly by the Raspberry Pi 5.
The fan is designed to operate quietly while providing effective cooling, but the noise level may vary slightly depending on the speed.
Yes, the package includes thermal pads for easy installation and optimal heat transfer.
