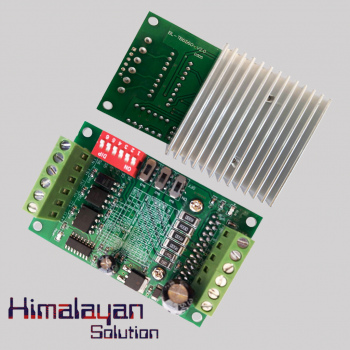

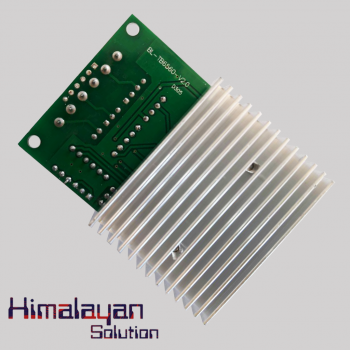

3D Printer Microstep Driver (Tb 6600) TB6600 TB6560
The 3D Printer Microstep Driver is a TB6560 3A CNC Router 1 Axis Driver Board Stepper Motor Driver Module. It has various features like: - Very easy to operate, Large heat sink to ensure good heat dissipation, Automatic half current function, Low voltage shutdown, Over-heating stop and over current protection circuit to ensure optimal performance, For two-phase within 42, 57 stepping 3A / four-phase / of line four / six-wire stepper motor, and is not suitable for more than 3A stepper motor, 6N137 high-speed optical coupling, guarantee high speed without losing step and many more. It can be suitable for various applications like: - Stepping motors from NEMA size 17 to 23, Labeling machines, Laser cutters, Engraving machines and many more.
Availability: Out Of Stock
| Name | 3D Printer Microstep Driver |
| Working Voltage Range | DC 10 V-35 V (Recommend Switching Power Supply DC 24 V) |
| Rated Maximum Output | ± 3 A, Peak 3.5 A |
| Chipset | Toshiba TB6560AHQ |
| Subdivision | Whole Step, Half-Step, Step 1/8, 1/16 Step, A Maximum Of 16 Subdivisions |
| Size | 75 x 50 x 35 mm / 2.95 x 1.96 x 1.37 inch (L x W x H) |
