Wireless Charging Module 2A

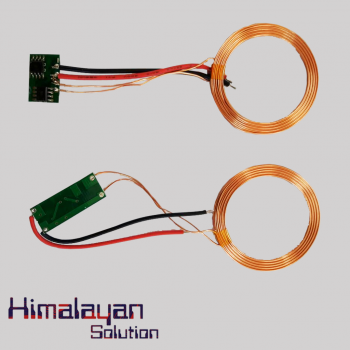

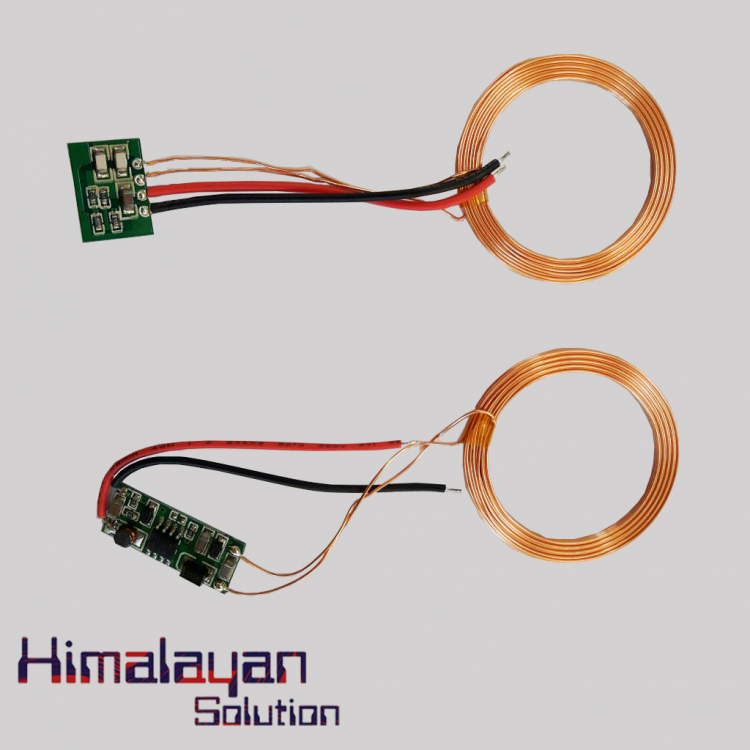

The Wireless Charging Module is an inductive wireless charging module suitable for any electronic projects for close wireless charging or power supply. It comes with two coils, a transmitter coil and a receiver coil. The trasmitter coil needs to be connected to a 12V DC power supply. The receiver coil would provide 5V DC @ 2000mA when transmitter is held close to it. Its small size and insulation coil is more suitable for using in wireless projects.
Availability: In Stock
| Name | Wireless Charging Module |
| Input Voltage | DC 12 V |
| Input Voltage (limit) | DC 13.5 V |
| Output Voltage | DC 5 V |
| Output Current (Maximum) | 600 mA |
| Transmitter Coil Inductance | 30 uH |
| Transmit To Receive Distance | 1 To 20 mm |
| Transmitter Dimension | 17*12*4 mm |
| Receiver Dimension | 24*10*3 mm |
| Coil Diameter | 38 mm |
| Coil Height | 2 mm |
