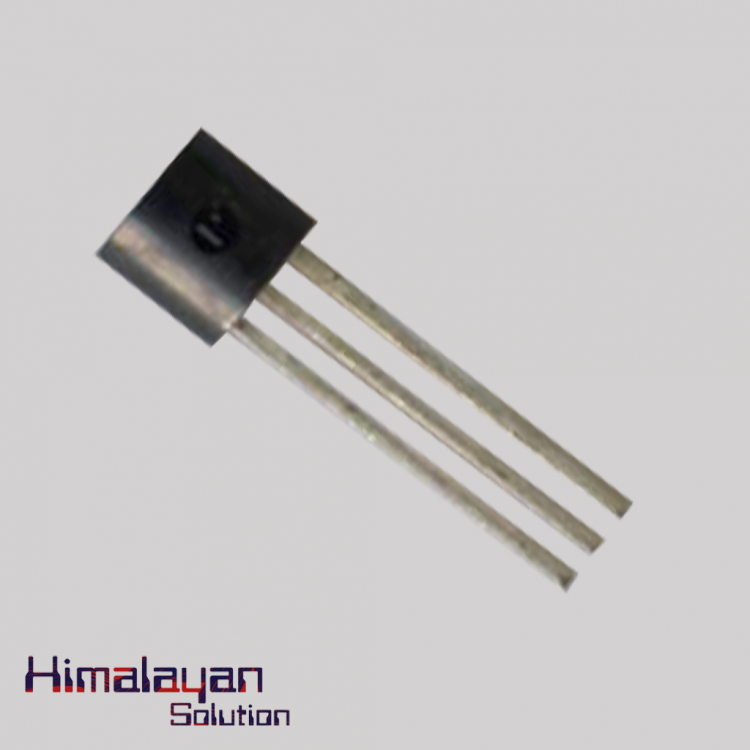

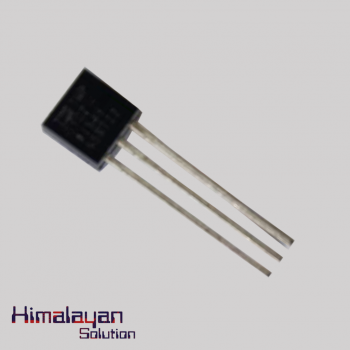

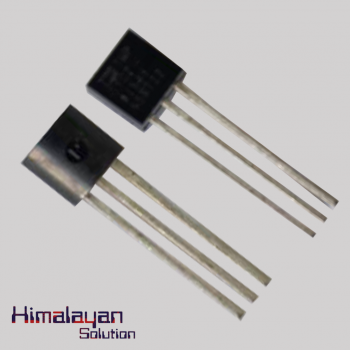

TMP 36GZ IC
The TMP36GZ IC is a Temperature Sensor Module having various features like: - Operate on low voltage, 10 mV/°C scale factor, ±2°C Temperature accuracy, ±0.5°C linearity, External Calibration not required, Stable with large capacitive loads, Specified −40°C to +125°C, operation to +150°C, Less than 50 µA quiescent current, Auto Shutdown current 0.5 µA max and low self-heating qualified for automotive applications etc. It provides a voltage output that is linearly proportional to the Celsius temperature. It requires 2.7 V to 5.5 V voltage range supply for operations. It can be suitable for various applications like: - Environmental control systems, Thermal protection, Industrial process control, Fire alarms, Power systems monitors, CPU thermal management and many more.
Availability: Out Of Stock
| Name | TMP36GZ IC |
| Scale Factor | 10 mV/°C |
| Temperature Accuracy | ±2°C |
| Linearity | ±0.5°C |
| Quiescent Current | Less Than 50 µA |
| Auto Shutdown Current (Max) | 0.5 µA |
| Supply Voltage | 2.7 V to 5.5 V |
| Supply Current | Up To 50uA |
| Ramp-Up Rate | 3°C/sec |
| Ramp-Down Rate | −6°C/sec |
| Offset Voltage | 0.5V |
| Output Voltage At 25°C | 750mV |
| Device Turning ON Time | 0.5ms |
| Operating Temperature Range | −55°C to +150°C |
| Storage Temperature Range | −65°C to +160°C |
