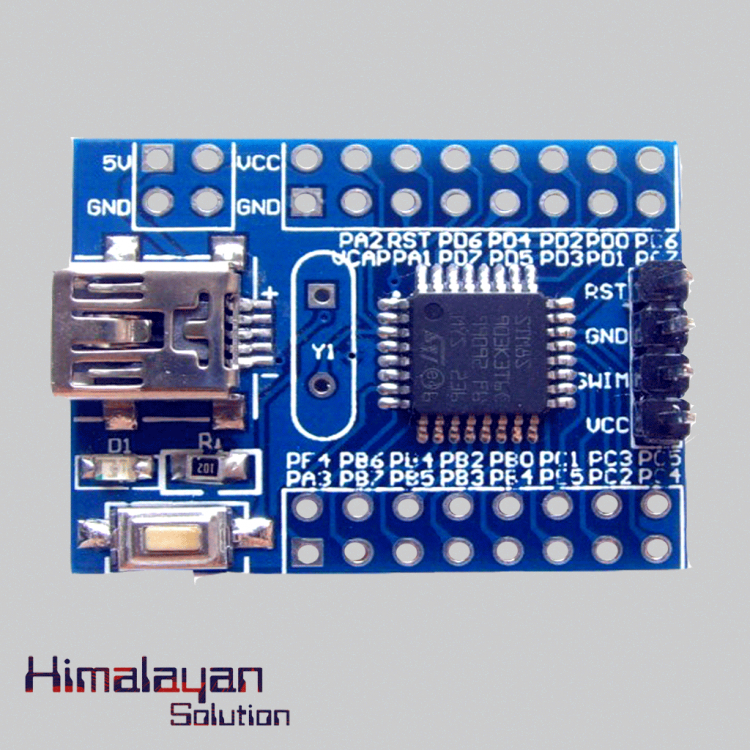

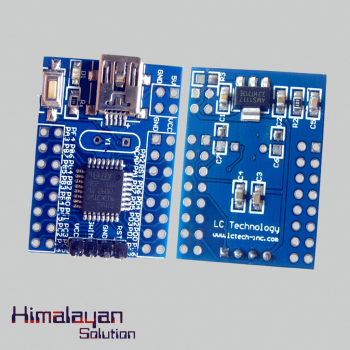

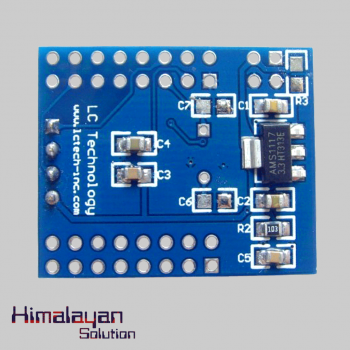

STM 8 Development Board
STM 8 Development Board is a very useful Development Board Module that uses STM8S103F3P6 as microcontroller. This Module is very suitable for learners for learning STM 8S microcontroller. It has various features like: - Directly plugged onto the MB102 breadboard, On-board SWIM interface, Programmed with ST-LINK V2, On-board reset button & power indicator LED, On-board test indicator LED & the beginners can program to control it, On-board 200ma 3.3V Regulator and many more. It can be suitable for various applications like: - Power supply, Analog-to-digital converter (ADC), Clock management, Reset control and development, Debugging tool support, STM8 software tool chain and many more.
Availability: Out Of Stock
| Name | STM8 Development Board |
| Operating Voltage | 3.3 V |
| IO Logic Voltage | 3.3 V |
| Digital I/O Pins | 16 |
| Analog Input Pins | 5 |
| Flash Memory | 8 KB |
| RAM | 1 KB |
| EEPROM | 640 B |
| Programmable Clock Speed | 16 MHz (MAX) |
| Microcontroller | STM8S103F3P6 |
| Burning Times | 10 k cycles |
| Form Color | Blue + Black |
| Material | PCB + Alloy |
| Dimensions | 1.14 in x 0.71 in x 0.71 in (2.9 cm x 1.8 cm x 1.8 cm) |
| Weight | 0.13 oz (3.6 g) |
