Servo Motor 35KG
designed for robotics, RC vehicles, mechanical arms, and automation projects requiring strong torque and precision control. With a torque capacity of up to 35 kg·cm at 7.4V, this servo provides powerful movement suitable for heavy loads and demanding applications.
Equipped with high-quality metal gears and dual ball bearings, it ensures durability, stability, and long service life. The servo operates on a wide voltage range (6V – 8.4V) and features digital control circuitry, which improves response time, holding power, and positioning accuracy compared to analog servos.
Availability: In Stock
30 kg·cm @ 6.0V
35 kg·cm @ 7.4V
Operating Voltage: 6.0V – 8.4V (supports 2S LiPo battery)
Operating Speed:
0.16 sec/60° @ 6.0V
0.13 sec/60° @ 7.4V
Motor Type: Coreless digital motor
Gear Material: Full metal gears (high strength, wear-resistant)
Bearing: Dual ball bearings
Signal Type: PWM (Pulse Width Modulation)

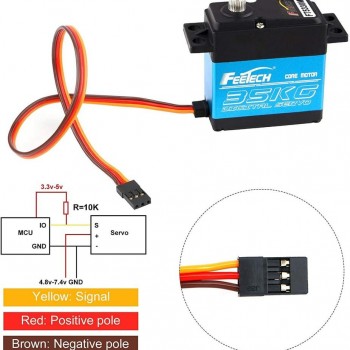

Connector: Standard 3-pin (PWM signal, VCC, GND)
Case Material: CNC aluminum alloy for better heat dissipation
