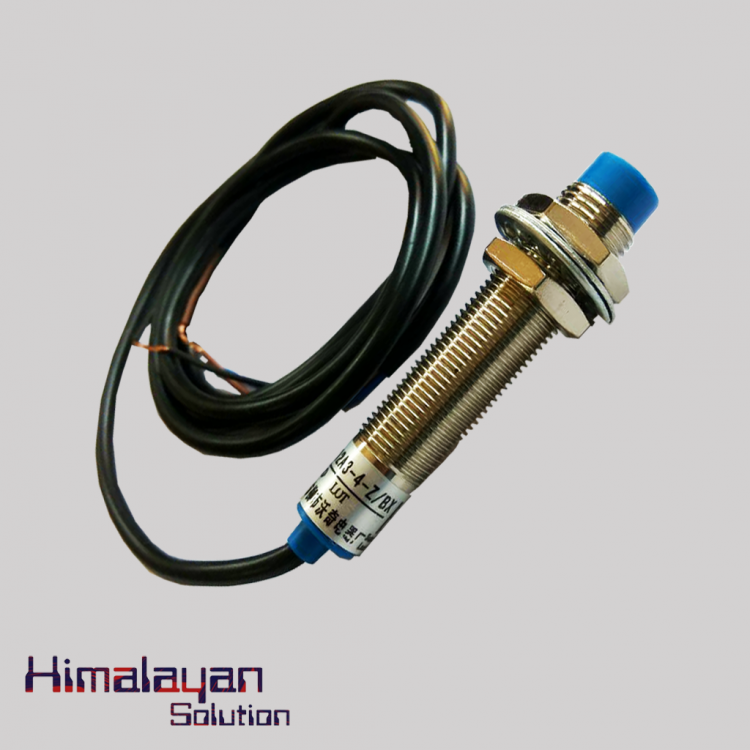

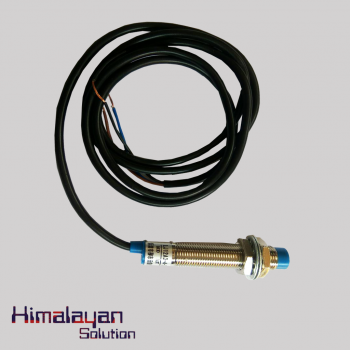

Proximity Switch LJ12A34Z/BX
The Proximity Switch is an Inductive Proximity Sensor Detection Switch with PNP normally open transistor switch, also known as Inductive sensor or metal sensor. It operates within a power supply voltage range of DC 6V to 36V. This Switch Module contains high frequency oscillations, a detection circuit, an amplifier circuit, a circuit solution, and an output circuit. It can be widely used in various applications like: - Automatic control industry for detection, controlling and non-contact switching, Paper making, Light industry for limiting station, Orientation taking count and many more.
Availability: In Stock
| Name | Proximity Switch |
| Output Type | PNP NO(Normal Open) |
| Detecting Distance | 4 mm |
| Supply Voltage Range | DC 6 V to 36 V |
| Output Current | 300 mA |
| Detect Object | Iron |
| Column Sensor Diameter | 10.4 mm / 0.4 inch |
| Thread Diameter | 12 mm / 0.5 inch |
| Wire Type | Cylindrical DC 3 Wire Type (Black, Brown, Blue) |
| Switch Appearance Type | Cylinder Type |
| Theory | Inductive Sensor |
| Response Frequency | 0.5 KHz |
| Operating Temperature | ‐25°C to 55°C (Non‐freezing Condition) |
