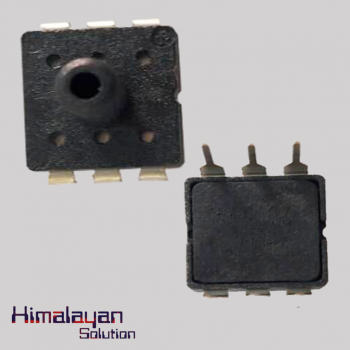

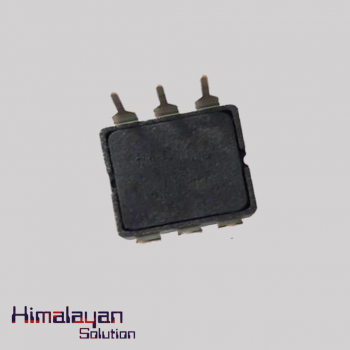

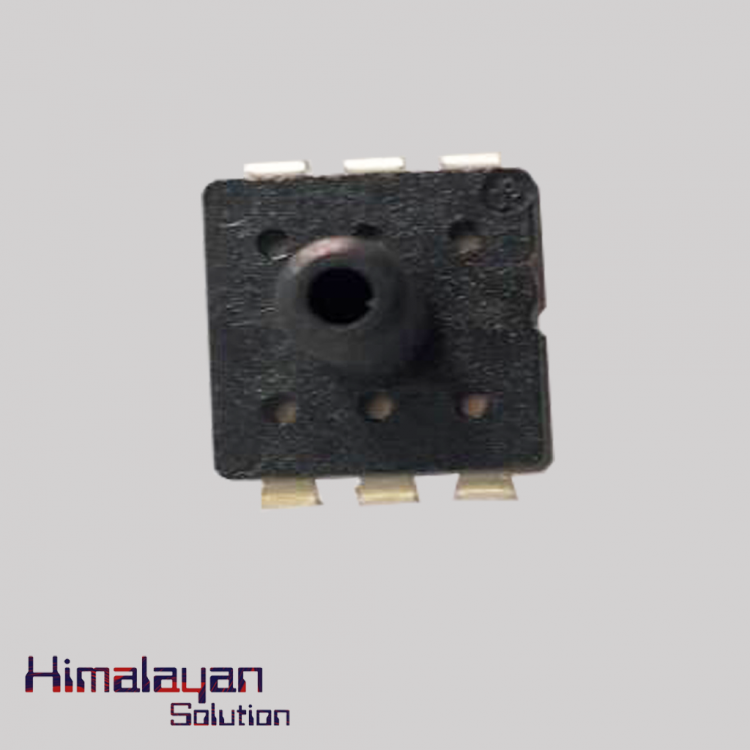

Pressure Sensor
The Pressure Sensor is a silicon material pressure sensor module with 6-pins. It produces a voltage output that is linearly proportional to the input pressure. It can be applicable in various fields like: - Blood pressure meter, Digital pressure gauges, Environmental monitoring, consumer and sports and many more.
Availability: Out Of Stock
| Name | Pressure Sensor |
| Measuring Medium | Air |
| Measuring Range | 0-40kPa |
| Operating Temperature Range | -40 ℃ ~ + 125 ℃ |
| Storage Temperature | -40 ℃ ~ + 150 ℃ |
| Humidity | (50% ± 10%) RH |
| Ambient Temperature | (25 ± 1) ℃ |
| Medium Temperature | (25 ± 1) ℃ |
| Output Impedance | 4kΩ ~ 6kΩ |
| Zero Output | -15mV~+15mV |
| Hysteresis | +-0.7%F.S. |
| Power Supply | ≤10V DC or ≤2.0mA DC |
| Insulation Resistance | 100MΩ, 100VDC |
