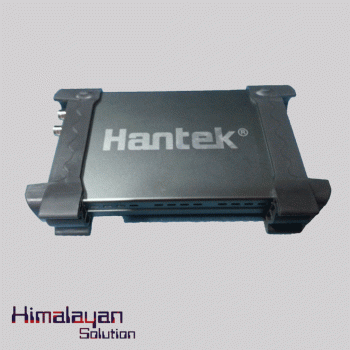

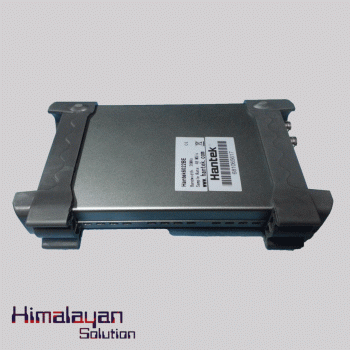

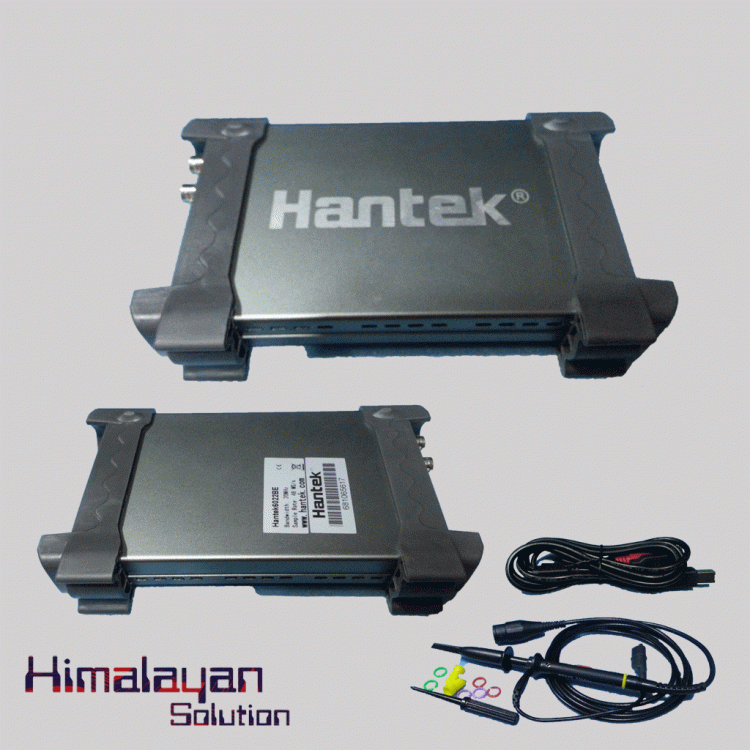

PC-Oscilloscope
This PC-Oscilloscope consists of plug and play USB Interface. There is no need to plug a power cord. The oscilloscope has a auto-setup feature due to which the measurement is easy. The waveforms are stored in the form of Excel or Word file.
Availability: Out Of Stock
| Name | PC-Oscilloscope |
| Channels | 2 |
| Bandwidth | 20 MHz |
| Input Impadence | 1 MΩ 25 pF |
| Max Sample Rate | 48 MS/s |
| Vertical Resolution | 8 bit |
| Gain Range | 20 mV - 5 V, 8 steps |
| DC Accuracy | ±3% |
| Time-base Range | 1 ns - 9000 s, 39 steps |
| Input Protection | Diode Clamping |
| Cursor | Frequency, Voltage |
| Supported OS | Windows 7. NT, 2000, XP, Vista |
| Name | Rating | Comment |
|---|---|---|
| Pradhumna Ghimire | 3.00 | Is this the Hantek 6022BE? What is the price of this thing? |
