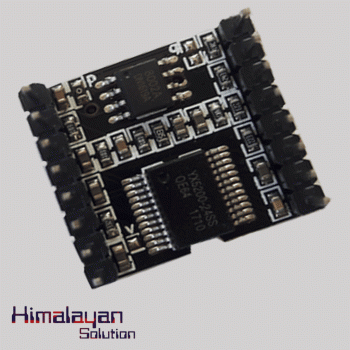

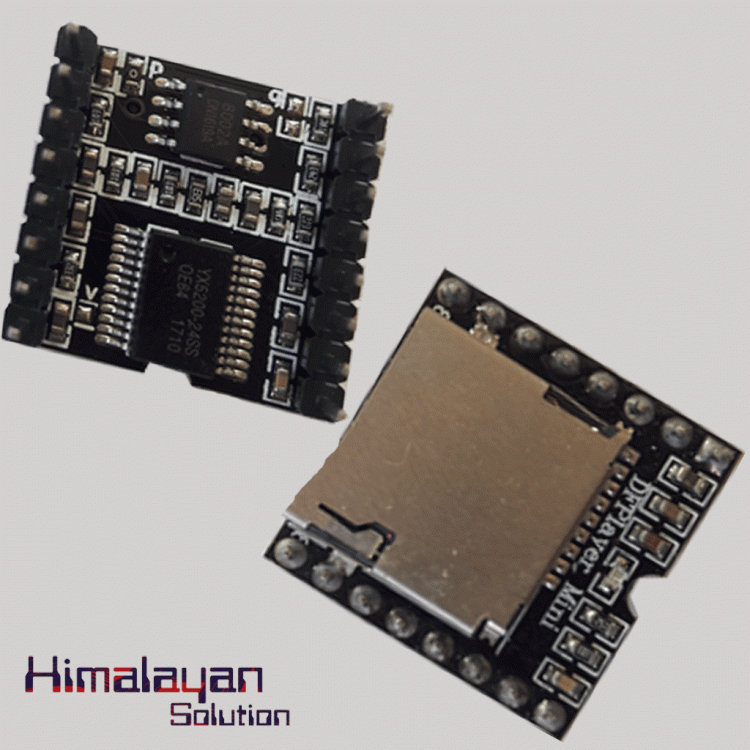

Mp3 Module
MP3 Module is used in car navigation voice broadcast, road transport inspectors, toll voice prompts,electric power, telecommunications, financial operating room voice prompts,multi-channel voice alarm or voice guidance equipment operation,fire alarm voice prompts.fully supports FAT16, FAT32 file system, maximum support 32G TF card, support U disk to 32G, 64M bytes of NORFLASH with ,30 level adjustable volume, adjustable EQ 6 the audio data is sorted by folder, supports up to 100 folders, folders can assign every 255 tracks the broadcast language spots feature, we can pause the background music being played. Advertising finished playing back background sound to continue playing.
Availability: In Stock
| MP3 Format | Support 11172-3 and ISO13813-3 layer3 audio decoding Support sampling rate (KHZ):8/11.025/12/16/22.05/24/32/44.1/48 |
| UART Port | Standard Serial; TTL Level; Baud rate adjustable(default baud rate is 9600) |
| Working Voltage | DC3.2~5.0V; Type :DC4.2V |
| Standby Current | 20mA |
| Operating Temperature | -40~+70 |
| Humidity | 5% ~95% |
| Supported Sampling Rates (kHz) | 8/11.025/12/16/22.05/24/32/44.1/48 |
| Speaker | 8 ohm |
| Application | Computer |
