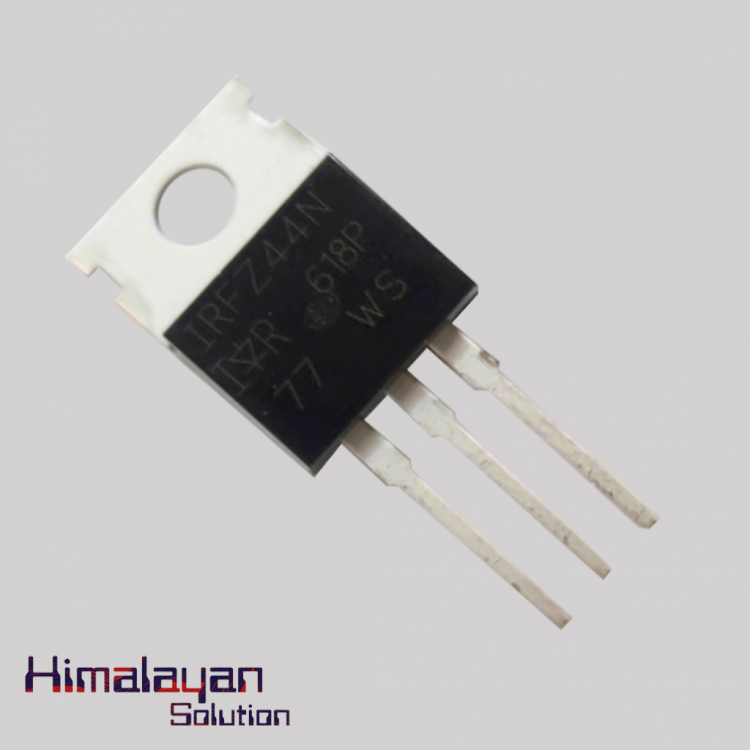

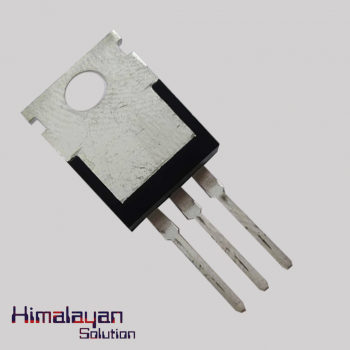

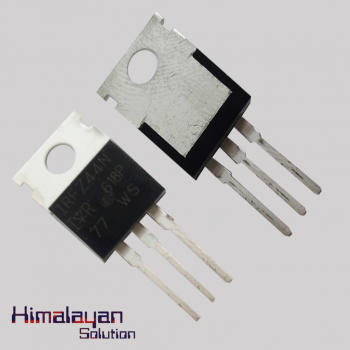

IRFZ44N Transistor
The IRFZ44N transistor is the N channel MOSFET transistor from international rectifier. It provides the best combination of fast switching, ruggedized device design, low on- resistance and cost effectiveness. It has TO-220AB package which is universally preferred for commercial industrial applications at power dissipation levels to approximately 50 W. It has low thermal resistance and low package cost respectively.
Availability: In Stock
| Name | IRFZ44N Transistor |
| Type Of Transistor | MOSFET |
| Type Of Control Channel | N -Channel |
| Maximum Power Dissipation | 150 W |
| Maximum Drain-Source Voltage | 60 V |
| Maximum Drain Current | 35 A |
| Maximum Junction Temperature | 150 °C |
| Maximum Drain-Source On-State Resistance | 0.028 Ohm |
| Operating Temperature | 175° C |
| Package | TO-220AB |
