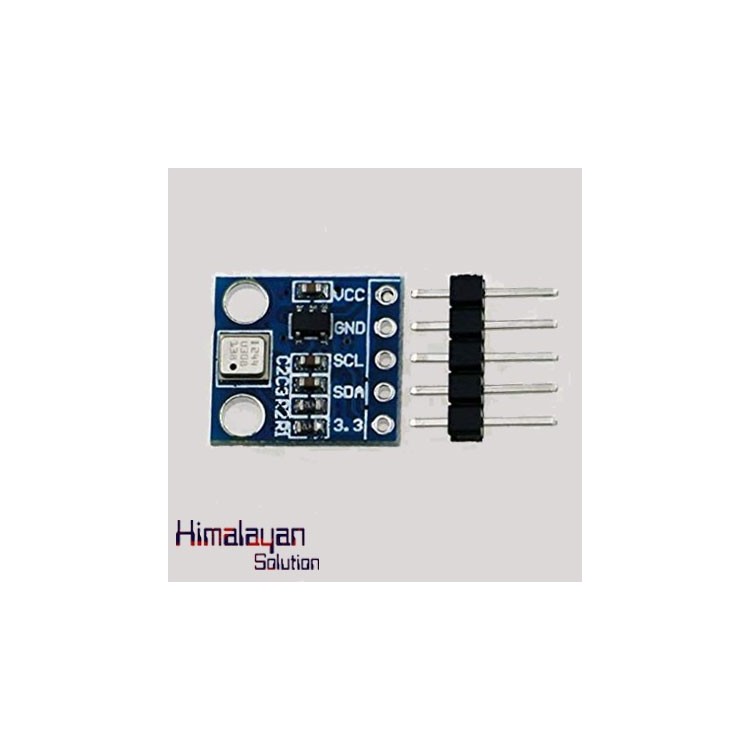

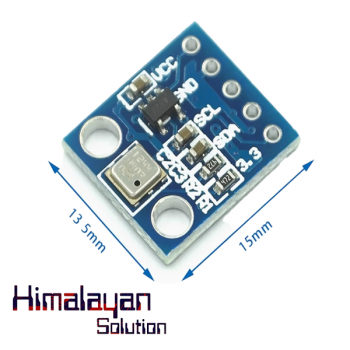

Gy-68 BMP 180 sensor

The GY-68 BMP180 sensor is a digital barometric pressure sensor that provides precise measurements of atmospheric pressure and temperature. It's an upgraded version of the BMP085 and is often used in applications such as weather stations, altimeters, and other systems requiring pressure and temperature monitoring. This module communicates via I2C, making it easy to interface with microcontrollers like Arduino, Raspberry Pi, and others.

Features:

Pressure Range: 300 hPa to 1100 hPa (equivalent to -500m to 9000m altitude)
Resolution: 0.01 hPa (0.1m altitude)
Temperature Range: -40°C to +85°C
I2C & SPI Interface (I2C commonly used)
Low power consumption: Ideal for battery-powered applications
Supply Voltage: 1.8V - 3.6V (typically 3.3V)

In Category:

Sensors

pressure

Availability: In Stock

Email to a Friend

Enquiry

Supply voltage	1.8V to 3.6V
Low power consumption	0.5uA at 1Hz
I2C maximum speed	3.5Mhz
Very low noise	up to 0.02hpa (17cm)
Pressure range	300hPa to 1100hPa (+ 9000m to-500m)

It has a sensor to determine the height of the robot, plane, or projectile. It can run at just 0.3ua which means low current draw for battery-powered applications. It comes fully calibrated and ready to use. This mini electronic product is high in precision, small in size, ultra-low power consumption of the pressure sensor can be used in mobile devices. It performs excellently. It has a powerful 8-pin ceramic leadless chip carrier that comes in the ultra-thin package can be connected directly through the I2C bus with a variety of microprocessors connected.
