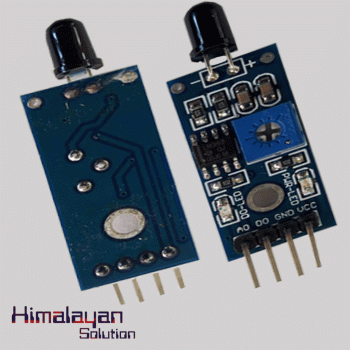

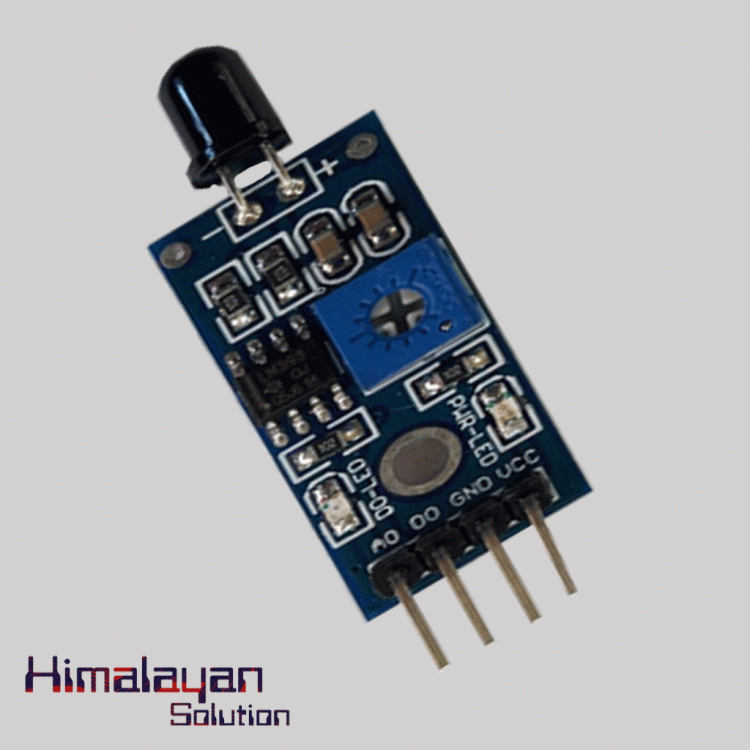

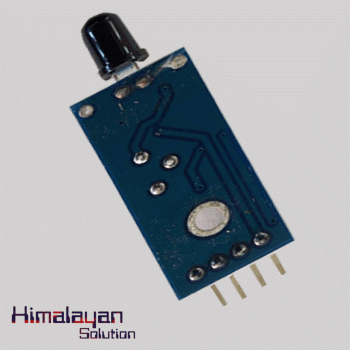

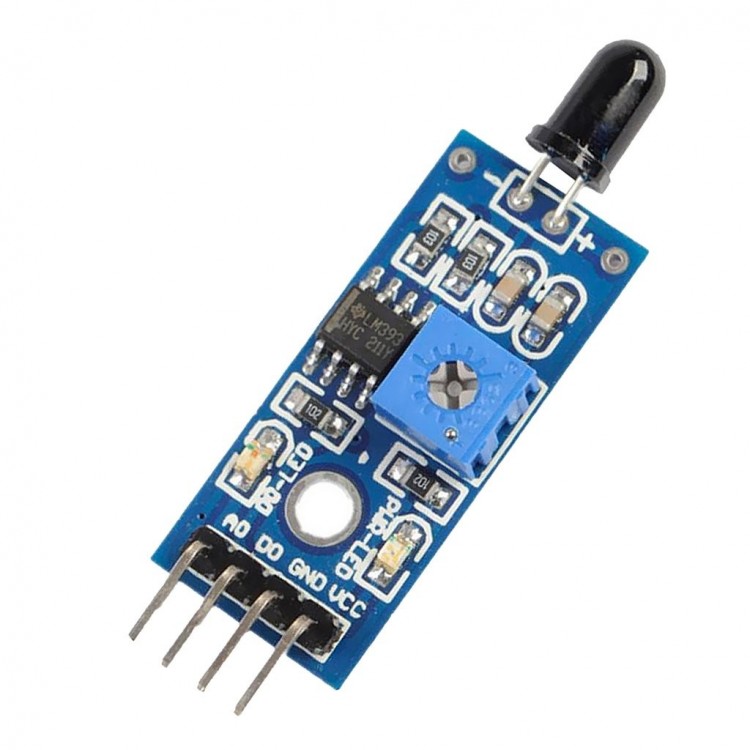

Flame Sensor Module
The flame sensor has wavelength of 760nm to 1100nm. It is mostly used in firefighting robot or heat seeking robot for detecting the flame or light source. The detection range of this module is 100cm. It has adjustable detecting range and be easily mountable.It has inbuilt signal output indicator and power indicator.
Availability: In Stock
| Supply Voltage | 3.3V to 5V |
| Detection Range | 20cm (4.8V) ~ 100cm (1V) |
| Rang of Spectral Bandwidth | 760nm to 1100nm |
| Responsive Time | 15us |
| Interface | Analog |
| Size | 22x30mm |
| Detection Distance | 20cm (4.8V) ~ 100cm (1V) |
| Detection Angle Degree | 0 - 60 degree |
| Operating temperature: | 25℃ ~ 85℃ |
| Mounting holes size | 2.0mm |
| Dimension | 27.3mm * 15.4mm |
