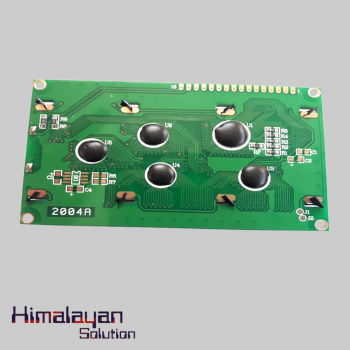

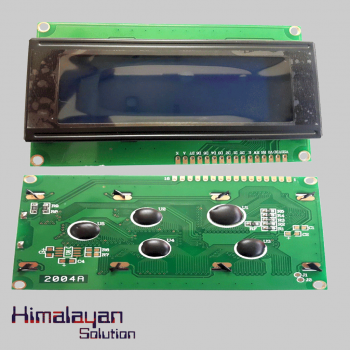

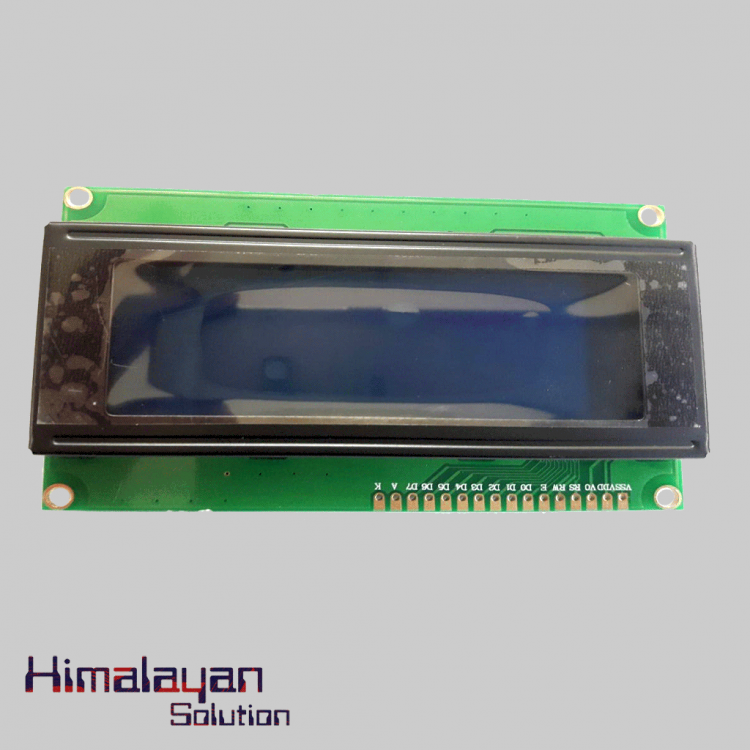

20* 4 LCD Module
20* 4 LCD module is 20 characters wide and row character LCD module made of high quality material. It can be controlled with 6 digitals line. It has built in characters set of English / Japanese. It has 16 pins connector. It can be used in different projects. It has connection port of 0.1" pitch.
Availability: In Stock
| Character LCD | 20x4 |
| Dots Includes Cursor | 5x8 |
| Power Supply | +5V |
| Driving Scheme | 1/16 Duty Cycle, 1/5 Bias |
| Interface | WH2004G - 6800, WH2004G1 - SPI, WH2004G2 - I2C |
| Viewing Area | 74.4 × 24.8 mm |
| Mounting Hole | 82.0 × 53.0 mm |
| Character Size | 2.95 × 4.75 mm |
| Display View Size | 76mm x 26mm |
| Display Type | STN, Transflective, Positive, Y-G |
| Controller | SPLC780D1 or Equivalent Control |
| Interface | 8-bit Parallel Interface |
| Operation Temperature | -10℃ to +60℃ |
| Storage Temperature | -20℃ to +70℃ |
| Size | 87.0 × 58.0 mm |
