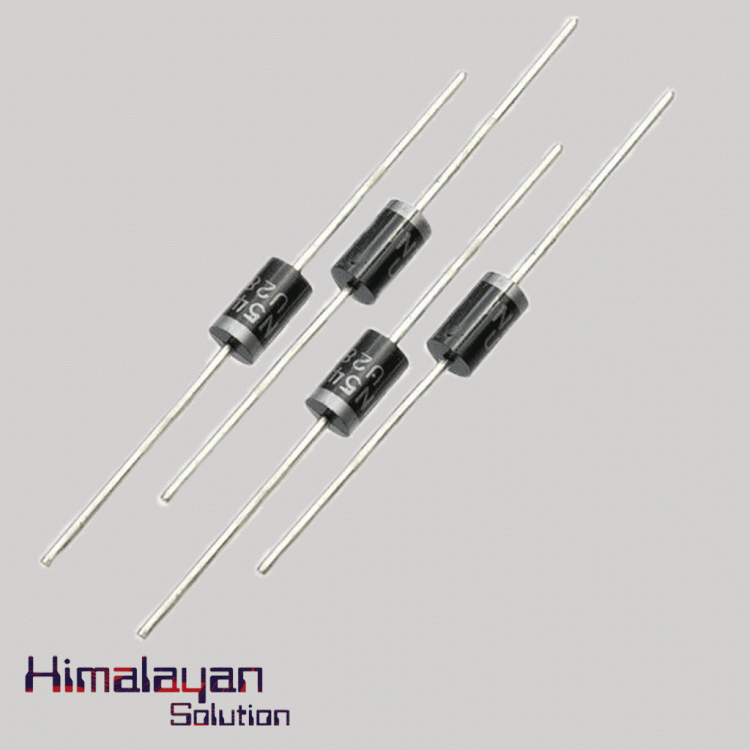

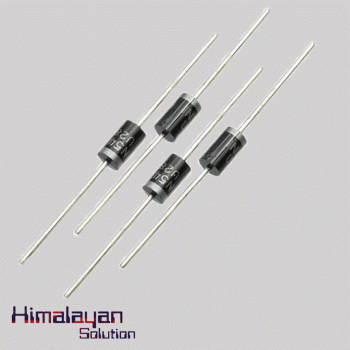

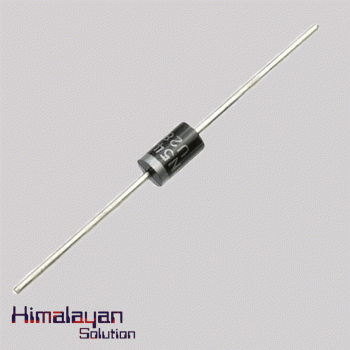

1N5408 Diode
1N5408 Diode consists of a diffused junction and has high current capability as well low forward voltage drop. It also has low reverse leakage current, consists of lead free finish and it RoH8 compliant.
Availability: Out Of Stock
| Name | 1N5408 Diode |
| Peak Repetitive Reverse Voltage | 1000 V |
| Working Peak Reverse Voltage | 1000 V |
| DC Blocking Voltage | 1000 V |
| RMS Reverse Voltage | 700 V |
| Average Rectified Output Current | 3.0 A |
| Non-Repetitive Peak Forward Current Surge | 200 A |
| Forward Voltage | 1.0 V |
| Typical Total Capacitance | 25 pF |
| Typical Thermal Resistance Junction to Ambient | 15° C/W |
| Operating and Storage Temperature Range | -65° C to 150° C |
