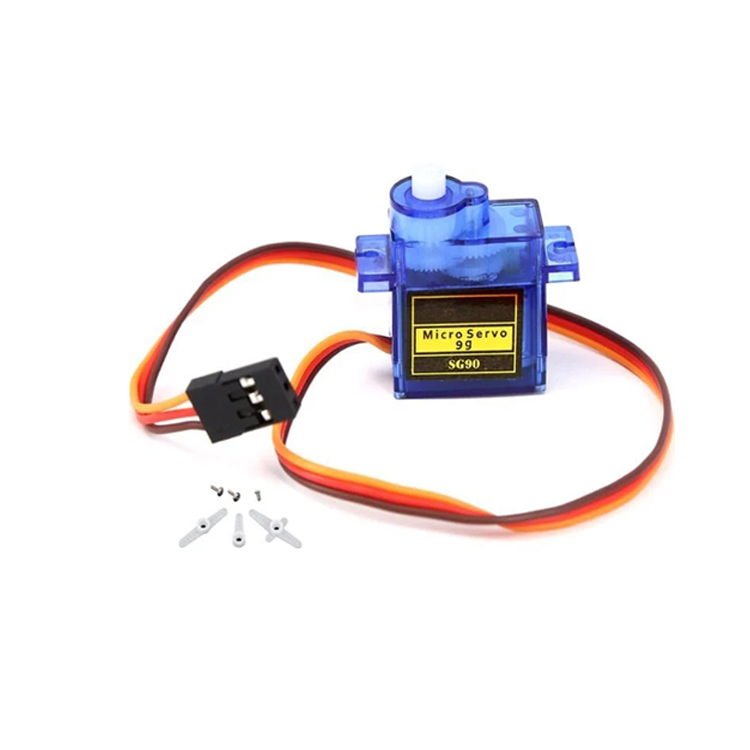

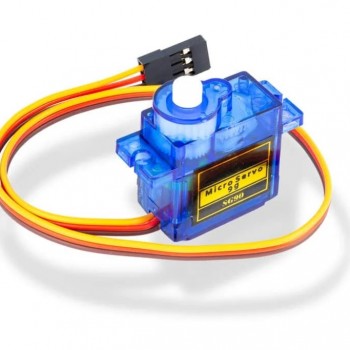

SG90 Servo Motor 360 Degree
The SG90 360-degree servo motor is a variation of the standard SG90 servo motor, designed for continuous rotation rather than angular positioning.
Features:
- Type: Continuous rotation servo motor.
- Rotation: 360 degrees, continuously in both directions.
- Control: Operated via PWM (Pulse Width Modulation) signals, where the width of the pulse determines the speed and direction of rotation.
- Voltage: Typically operates on 4.8V to 6V.
- Torque: Approximately 1.6 kg-cm (at 4.8V).
- Speed: Around 110 RPM at 6V (varies with the load).
Availability: In Stock
| Model | SG90 |
| Material type | Plastic |
| Gear | Plastic |
| Rotation Type | Continuous (360) |
| Operating Voltage | 4.2V - 6V |
| Stall Torque | 1.8kg/cm(4.8v) |
| Idle Current | 10 mA |
| Operating Current | 100-250 mA (depending on load) |
| Color | Blue |
Wiring:
- Orange Wire: Signal (PWM input).
- Red Wire: Power (+V).
- Brown Wire: Ground (GND).
PWM Control:
- A 1.5ms pulse generally stops the motor.
- A pulse width less than 1.5ms rotates the motor in one direction, with speed increasing as the pulse gets shorter.
- A pulse width greater than 1.5ms rotates the motor in the opposite direction, with speed increasing as the pulse gets longer.
