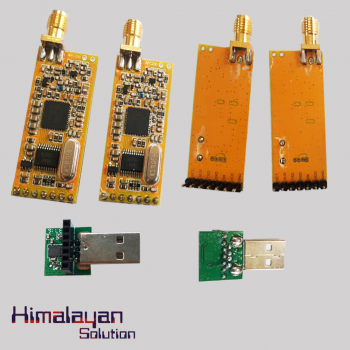

Apc 230 Wireless Transceiver Module
The APC230 Wireless Transceiver Module is self organizing wireless transceiver module. It is highly integrated semi duplex low power wireless data transfer module. It has embedded high speed microprocessor and high performance IC. It also has improved anti-interference and sensitivity for high efficiency forward error correction channel encoding technology. It can be suitable for various applications like: - Wireless transducer, Industrial automation, Remote control and monitoring, the management of cars, Wire replacement, the control of traffic signals, Wireless handheld terminal, automated meter reading and many more.
Availability: Out Of Stock
| Name | APC230 Wireless Transceiver Module |
| Operating Frequency | 418MHz to 455MHz |
| Modulation System | GFSK |
| Frequency Interval | 200KHz |
| Transmitted Power | 100mw (10 Levels) |
| Received Sensitivity | -117dBm@9600bps |
| Air Transmission Rate | 2400 — 19200 Bps |
| Interface Rate | 1200-57600 Bps |
| Interface Efficiency Way | 8E1/8N1/8O1 |
| Interface Cushion Space | 256bytes |
| Operating Humidity | 10%~90% (Non-Condensing) |
| Operating Temperature | -30°C — 85°C |
| Power Supply | 3.5 — 5.5V (±50mV Ripple Wave) |
| Transmit Current | a¦100mA@100mW |
| Receiving Current | a¦32mA |
| Sleeping Current | a¦5uA |
| Transfers Distance | 2000m (Open Space) |
| Size | 39.5mm x 18.3mm x 7.0mm |
| Optional Interface Of UART/TTL | RS232,RS485 |
