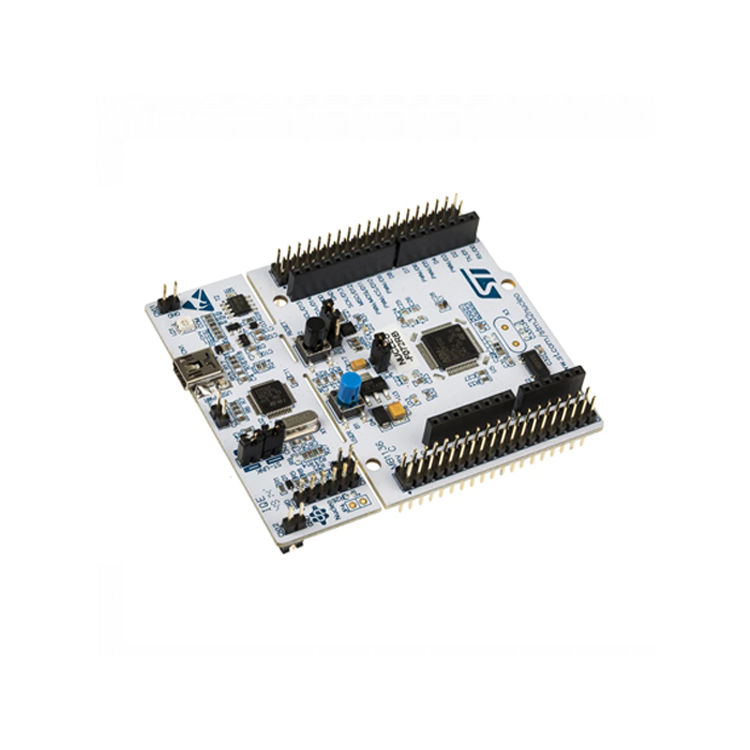

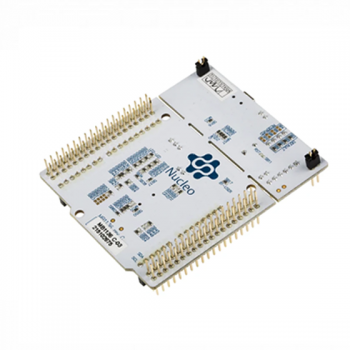

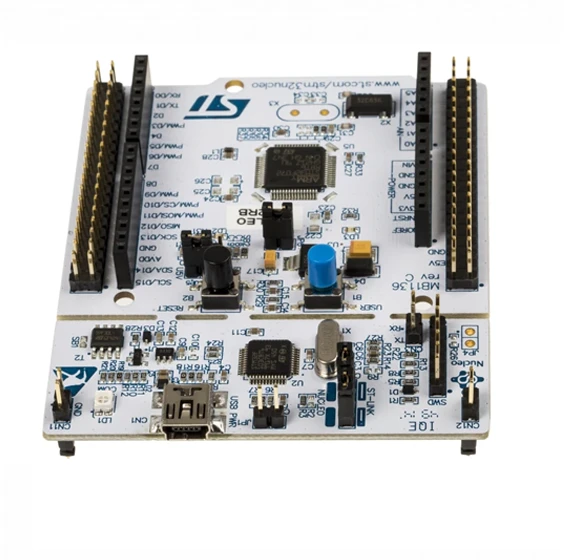

STM32 NUCLEO-F072RB Development Board - ARM Cortex-M0 MCU, Arduino Compatible
The STM32 NUCLEO-F072RB Development Board features the STM32F072RBT6 ARM Cortex-M0 MCU, providing 32-bit performance for embedded projects. It supports Arduino Uno R3 and ST Morpho headers for easy expansion and integration. With a built-in ST-LINK/V2-1 debugger/programmer, multiple power options, and support for major IDEs like IAR, Keil, and GCC, this board is ideal for rapid prototyping and development.
Availability: Out Of Stock
| Microcontroller: | STM32F072RBT6 (ARM Cortex-M0, 32-bit) |
| Processor Family: | STM32 F0 Series |
| Operating Voltage: | 3.3V, 5V, 7-12V (via USB or external power source) |
| Debug/Programming Interface: | Built-in ST-LINK/V2-1 (SWIM/SWD) |
| Connectivity: | Arduino Uno R3 compatibility / ST Morpho headers for full STM32 I/O access |
| USB Interfaces: | Virtual COM port, mass storage, debug port |
| IDE Support: | IAR, Keil, GCC-based IDEs, mbed-enabled |
| LEDs: | USB communication LED, user LED, power LED |
| Buttons: | User button, reset button |
| Power Options: | USB VBUS, external (3.3V, 5V, 7-12V) |
| Dimensions: | Standard Nucleo-64 form factor |
The STM32F0 Series microcontrollers (MCUs) by STMicroelectronics, based on the 32-bit ARM® Cortex®-M0 core, are designed for embedded applications that require low power, real-time performance, and digital signal processing. This series delivers 32-bit performance with simplicity and low voltage operation, making it an ideal choice for small projects or platform decisions.
Key Features of STM32F0 Series:
- ARM Cortex-M0 core: The Cortex-M0 core is designed for low-power, real-time processing in embedded applications.
- Low voltage and power efficiency: Suitable for battery-powered and energy-constrained systems.
- Digital signal processing and real-time performance: Enables efficient signal processing and control algorithms.
NUCLEO-F072RB Nucleo-64 Development Board
The NUCLEO-F072RB is a development board designed for prototyping with the STM32F072RBT6 MCU from the STM32 F0 series. This board features Arduino™ compatibility, making it easy to use for development and integration with existing Arduino shields, as well as ST’s Morpho headers for extending functionality with additional peripherals.
Key Features of NUCLEO-F072RB:
- Microcontroller: On-board STM32F072RBT6 MCU based on the ARM Cortex-M0 core.
- Arduino and Morpho connectivity: Compatible with Arduino Uno R3 and additional peripherals using ST Morpho headers.
- Debugger/Programmer: Integrated ST-LINK/V2-1 debugger/programmer, enabling SWIM/SWD interface for easy programming.
- Flexible Power Options: Powered via USB VBUS or external sources (3.3V, 5V, 7-12V).
- IDE support: Compatible with a variety of development environments, including IAR, Keil, and GCC-based IDEs.
- USB Interfaces: Supports virtual COM port, mass storage, and debug port through USB.
System Requirements:
- PC Compatibility: Windows (XP, Vista, 7, 8) with a USB type A to Mini-B cable for connection.
Development Resources:
- Comprehensive Software HAL Library: Provides access to hardware resources and peripheral drivers.
- mbed-enabled: Supported by the mbed development platform for rapid prototyping and ease of use.
The STM32 NUCLEO-F072RB is a development board based on the STM32F072RBT6 microcontroller, featuring an ARM Cortex-M0 core. It is designed for prototyping embedded applications and is compatible with Arduino and ST Morpho shields.
The board supports various Integrated Development Environments (IDEs), including IAR, Keil, and GCC-based IDEs. It is also mbed-enabled for rapid prototyping.
You can power the board via USB (VBUS) or an external power supply (3.3V, 5V, 7-12V). The power management features allow flexibility in power sourcing.
Yes, the NUCLEO-F072RB is compatible with Arduino Uno R3 shields, allowing for easy integration of additional functionalities.
The board has an integrated ST-LINK/V2-1 debugger/programmer, which supports SWIM/SWD for programming and debugging the microcontroller.
Yes, the board can be used for commercial applications; however, ensure compliance with licensing and regulations for your specific project.
The STM32 NUCLEO-F072RB is ideal for a variety of projects, including IoT applications, sensor interfacing, robotics, and real-time data processing.
