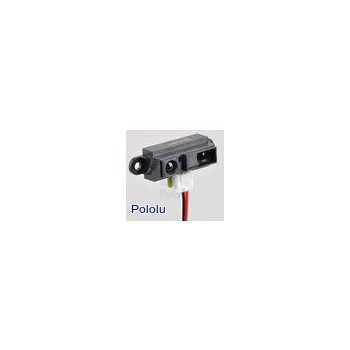

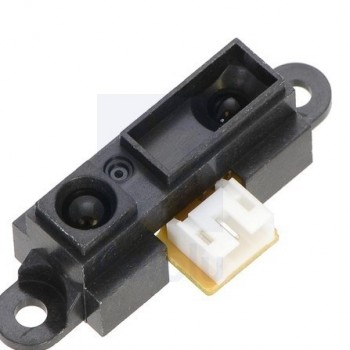

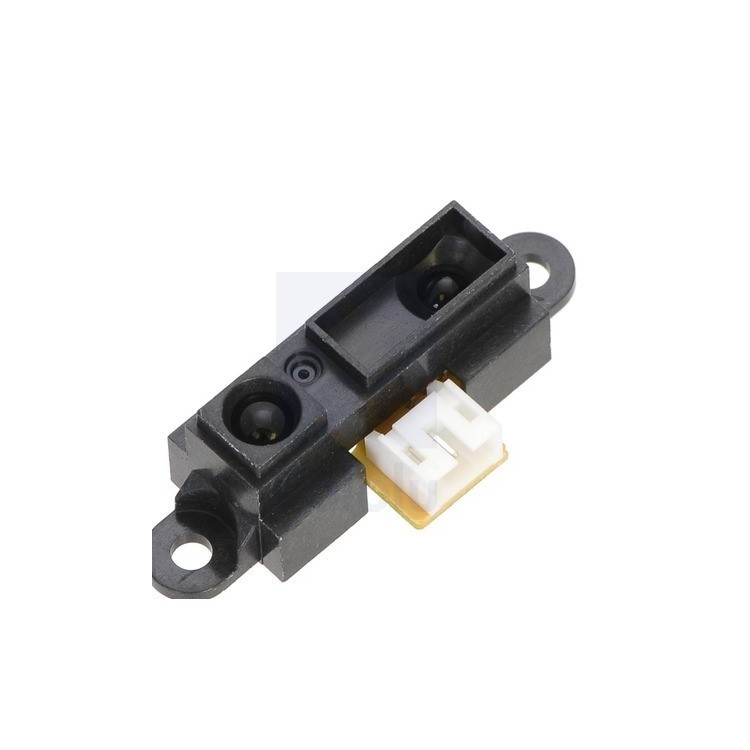

Sharp Distance Sensor 2y0a41sk0f
The GP2Y0A41SK0F is very useful for detecting very close objects (4 cm to 30cm) The sensor uses a 3-pin JST PH connector. These cables have a 3-pin female JST connector at one end. On the other end, the wires are unterminated, so you must strip them at the appropriate length with scissors or a wire stripper.
Availability: In Stock
| Maximum range | 30cm |
| Minimum range | 4 cm |
| Sampling rate | 60 Hz1 |
| Minimum operating voltage | 4.5 V |
| Maximum operating voltage | 5.5 V |
| Supply current | 12 mA2 |
| Output type | analog voltage |
| Output voltage differential | 2.3 V |
GP2Y0A41SK0F is a distance measuring sensor unit, composed of an integrated combination of PSD (position sensitive detector) , IR-LED (infrared emitting diode) and signal processing circuit. The variety of the reflectivity of the object, the environmental temperature and the operating duration are not influenced easily to the distance detection because of adopting the triangulation method. This device outputs the voltage corresponding to the detection distance. So this sensor can also be used as a proximity sensor.
