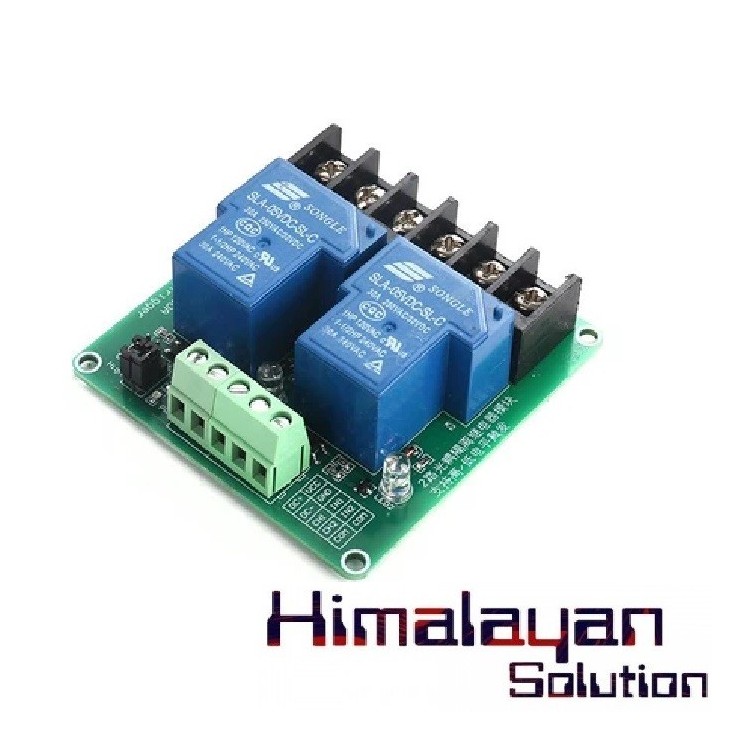

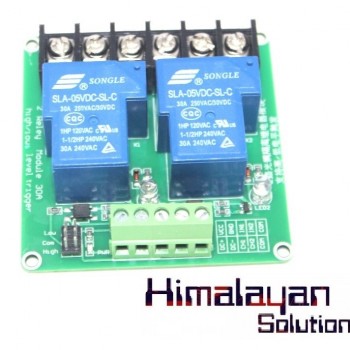

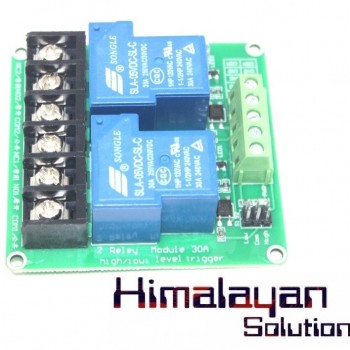

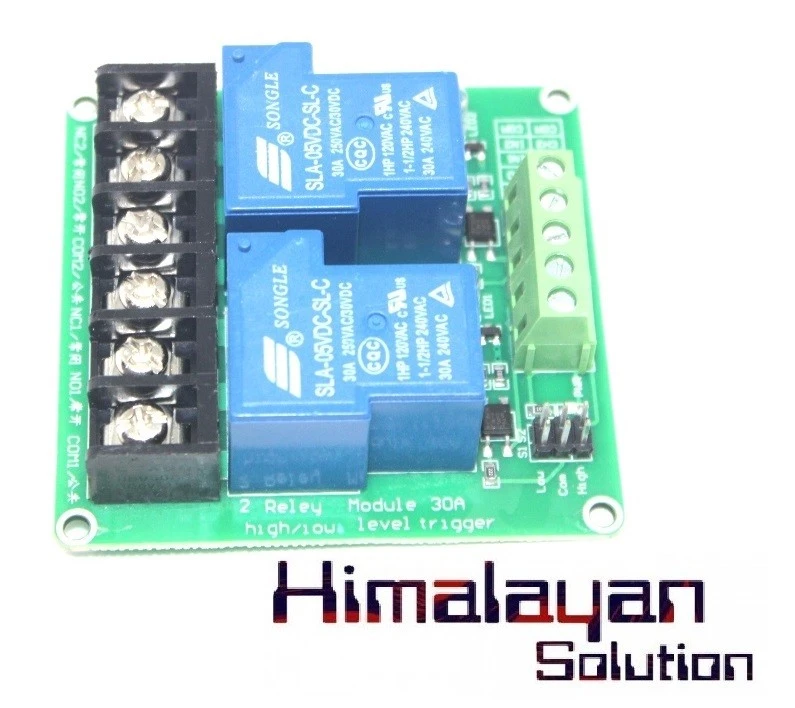

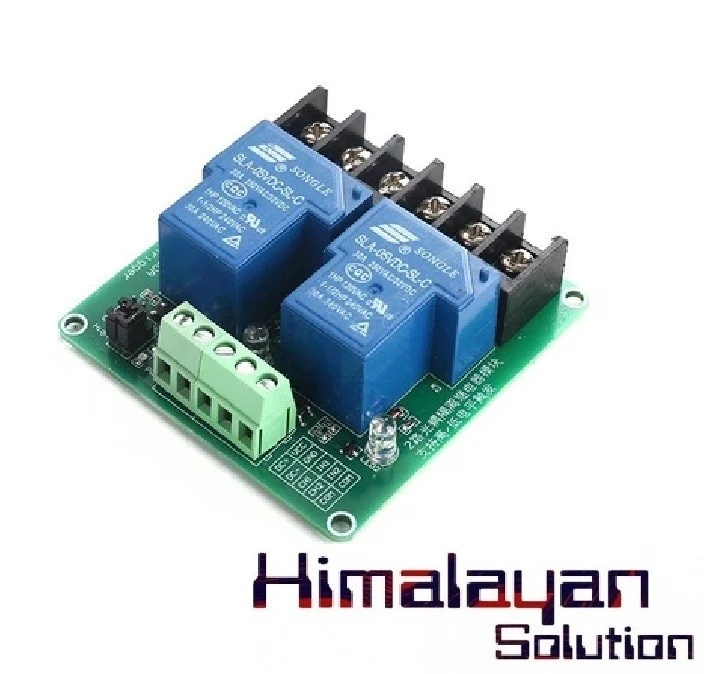

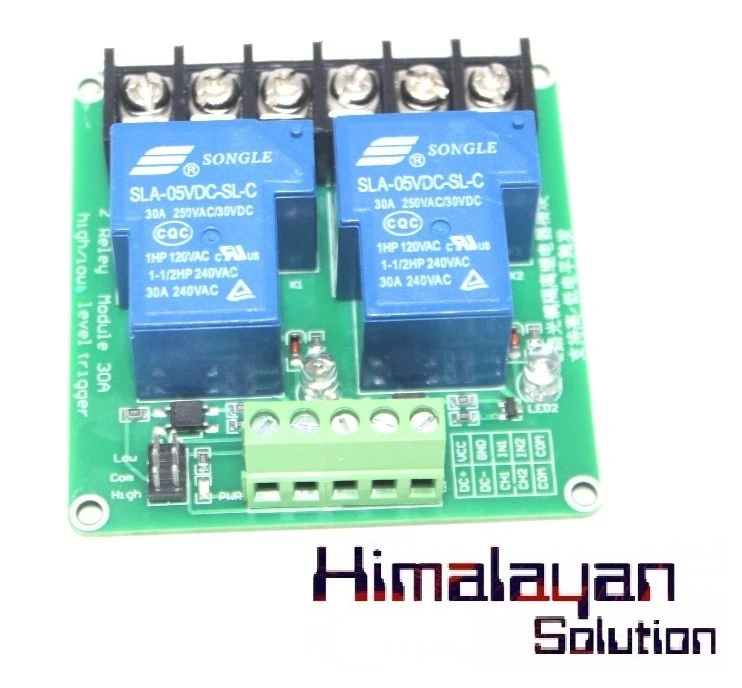

Relay Module 2 Channel 5v, 30A

• Supply Voltage: DC 5V
• Quiescent Current: 5mA
• Maximum Operating Current: 190mA
• Trigger Mode: High and low-level trigger
• Load Voltage: DC 30V / AC250
• Load Current: 30A
• Relay Life: more than 100,000 times

Features:

• Using high-power relay, the maximum control load DC 5V 30A / AC 250V 30A;
• With each optocoupler isolation, anti-interference ability.
• In line with international safety standards, the control area and the load area with isolation slot.
• Each channel has a relay on the LED indication.
• Product Applications: PLC automation equipment control, industrial system control, logistics network control, home intelligent product control, electronic enthusiasts to develop experiments, all kinds of circuit modification.
