Gy 87 Sensor

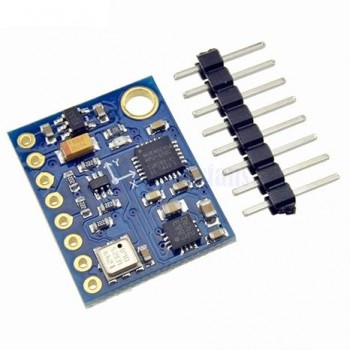

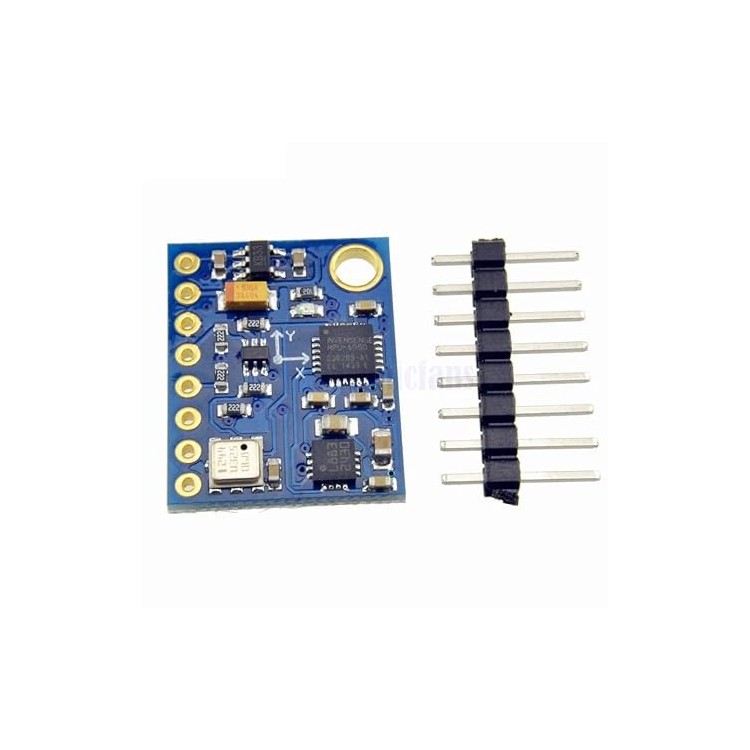

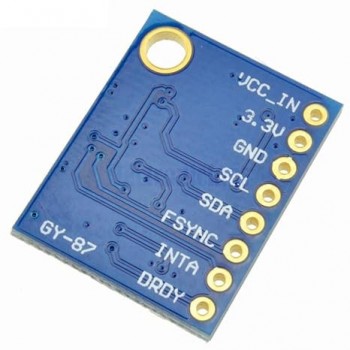

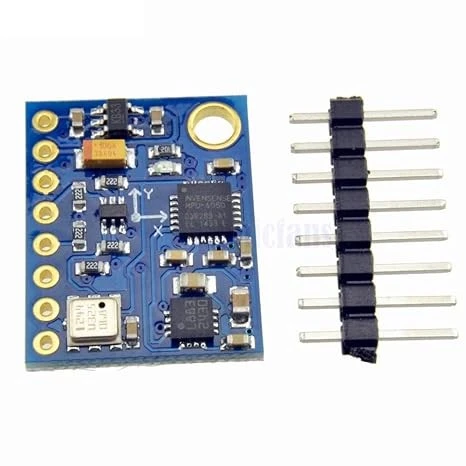

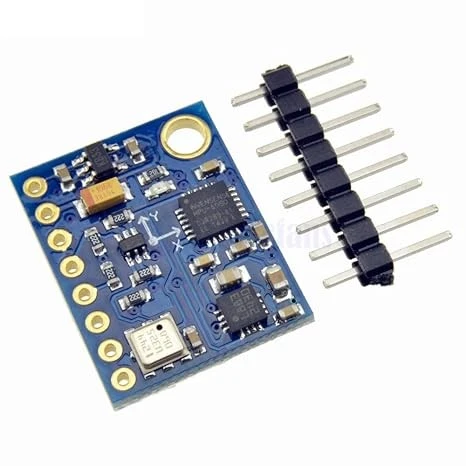

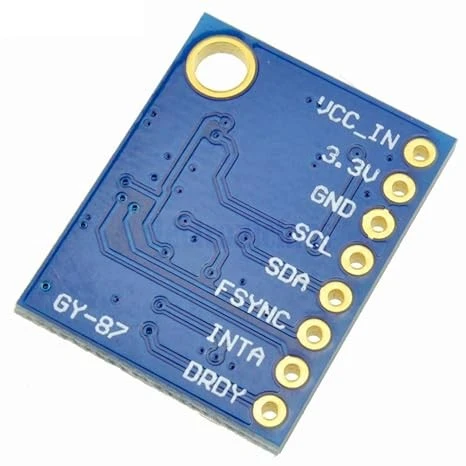

The HW-290/GY-87 10DOF Sensor Fusion Module is a small board that combines a triaxial gyroscope, a triaxial accelerometer, a triaxial magnetic field, and a barometer. On the board is also a filter, which reduces the noise of the motor. It is used for GPS-navigation, free-fall detection, FPV, RC, and robot systems.
Means of communication: IIC communication protocol (fully compatible with 3-5v system containing LLC circuit
- ntegrates three sensors for comprehensive data acquisition
- MPU6050 for 3-axis accelerometer and 3-axis gyroscope
- HMC5883L for 3-axis magnetometer
- BMP180 for barometric pressure and temperature measurement
- I2C communication interface for easy integration
- Compact design for integration into various project
Availability: In Stock
- MPU6050:
- Sensor Type: 3-axis accelerometer and 3-axis gyroscope
- Measurement Range:
- Accelerometer: ±2g, ±4g, ±8g, ±16g
- Gyroscope: ±250, ±500, ±1000, ±2000 degrees/second
- Communication Interface: I2C
- Operating Voltage: 3.3V to 5V DC
- HMC5883L:
- Sensor Type: 3-axis magnetometer
- Measurement Range: ±1.3 to ±8.1 Gauss
- Communication Interface: I2C
- Operating Voltage: 3.3V to 5V DC
- BMP180:
- Sensor Type: Barometric pressure and temperature sensor
- Pressure Range: 300 to 1100 hPa
- Temperature Range: -40°C to +85°C
