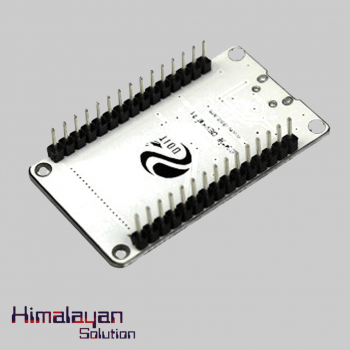

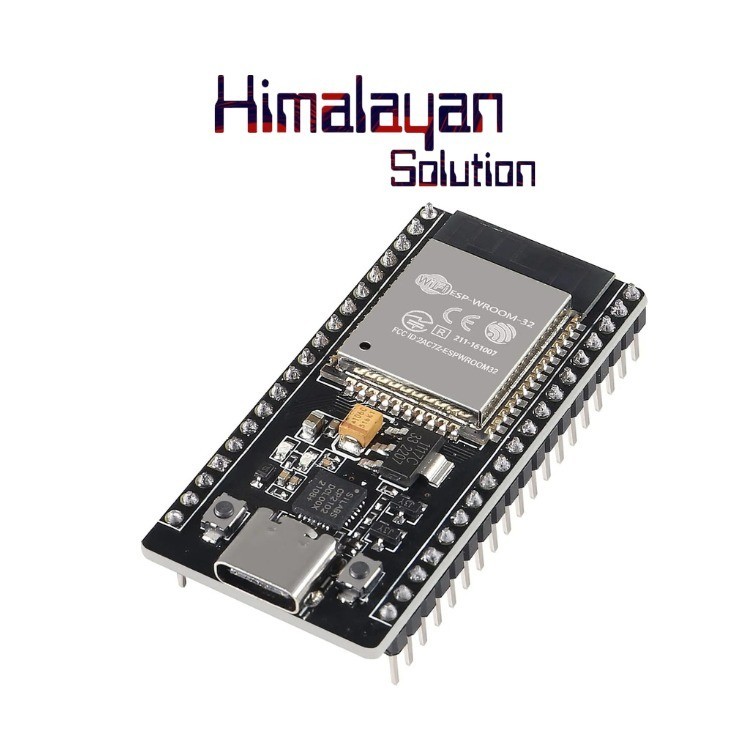

ESP32 WROOM WiFi and Bluetooth Development Board USB Type-C
Esp32wroom is a small-sized ESP32-based chip microcontrollers with integrated Wi-Fi & dual-mode Bluetooth. Its application are Universal low power IoT sensor hub, Home automation, Universal low power IoT recorder, Baby monitor, Smart socket, Sensor network and many more. It has on- board PCB anteena with high level of integration and ultra low power management.
Availability: In Stock
| Current Receiving | 80 mA |
| Voltage Supply | 2.2 V ~ 3.6 V |
| Current Transmitting | 80 mA |
| Data Rate | 54 Mbps |
| Frequency | 2.4 GHz |
| Mounting Type | Surface Moun. |
| Operating Temperature | -40°C ~ 85°C |
| Power Output | 16.5 dBm |
| Protocol | 802.11b/g/n/d/e/i |
| Sensitivity | -98dBm |
| GPIO | 32 |
| SRAM | 520 KB |
| Flash Memory | 4 MB |
| Weight | 9.6g |
| Size | 55.3 x 28.0 x 12.3 mm |
his ESP-WROOM-32 WiFi & Bluetooth Development Board is backed by low-power TSMC 40nm technology. The board supports 2.4GHz wireless protocol and features Dual Core Chip. The module has a CH340 USB Type-C interface.
This wireless development board features a pre-integrated ESP32 chip with features such as a power amplifier, RF balun, antenna, filters, and a low-noise amplifier. The RF feature makes the board reliable and scalable for different applications.
