ESP32 with CH340 Development Board

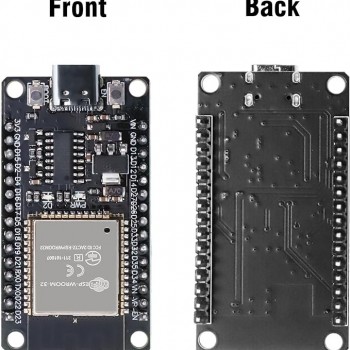

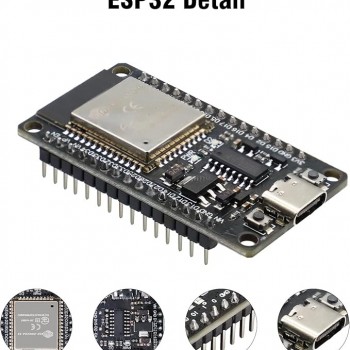

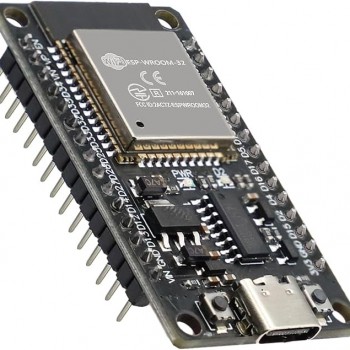

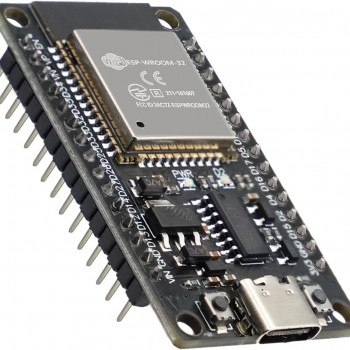

This is the ESP32S-DEV development board, designed around the ESP-WROOM-32 module, which provides robust WiFi and Bluetooth connectivity. It also features an onboard USB CH340 chip and incorporates physical keys for enhanced usability. Importantly, the board ensures full accessibility to all I/O pins of the ESP-WROOM-32 module through its extension headers. These headers consist of 2×19 pins each, facilitating the breakout of every I/O pin from the module. Additionally, the board includes 2x keys that can be utilized either as reset buttons or for customizable user functions, adding versatility to its functionality.
Availability: In Stock
- ESP-WROOM-32: Features a 32-bit 240 MHz microprocessor.
- Supply Voltage: Operates at 5V.
- Wireless Connectivity: Supports 2.4 GHz Wi-Fi and Bluetooth 4.2.
- Storage: Includes 4 MByte (32Mbit) SPI Flash, 448 KB ROM, 520 KB SRAM, and an additional 16 KB SRAM in RTC.
- Antenna: Equipped with a PCB antenna.
- Power Options: Can be powered via USB Type-C connector or through the pin header.
- Buttons: Includes Reset and User/Firmware buttons.
- LEDs: Features User and Power LEDs.
- USB Type-C Connector: Supports connectivity and provides a virtual USB port for debugging and firmware upgrades, facilitated by the CH340.
- Assembly: Assembled with the ESP-WROOM-32 module.

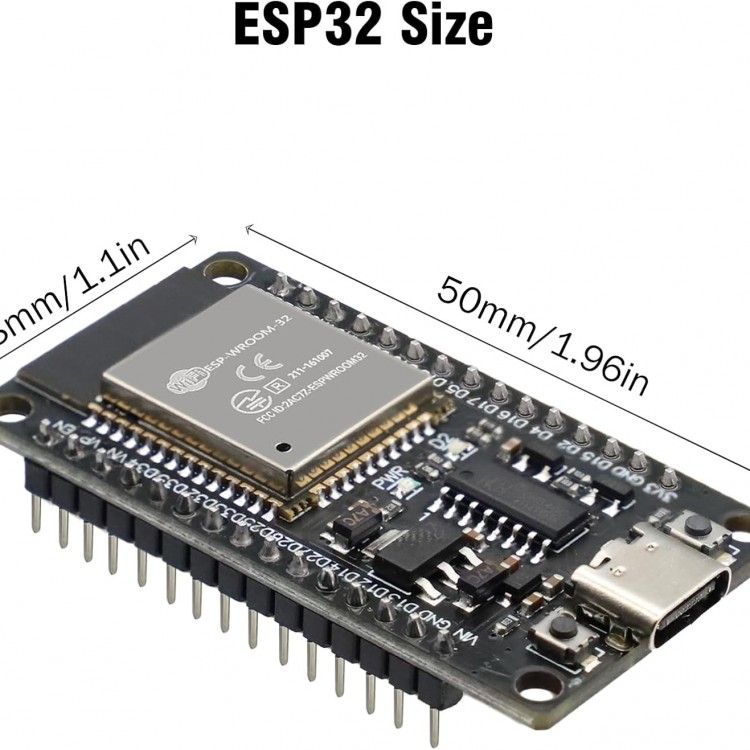

- Dimensions: Compact size, measuring 51.5 x 28.5m
