UT 136 A Multi-meter

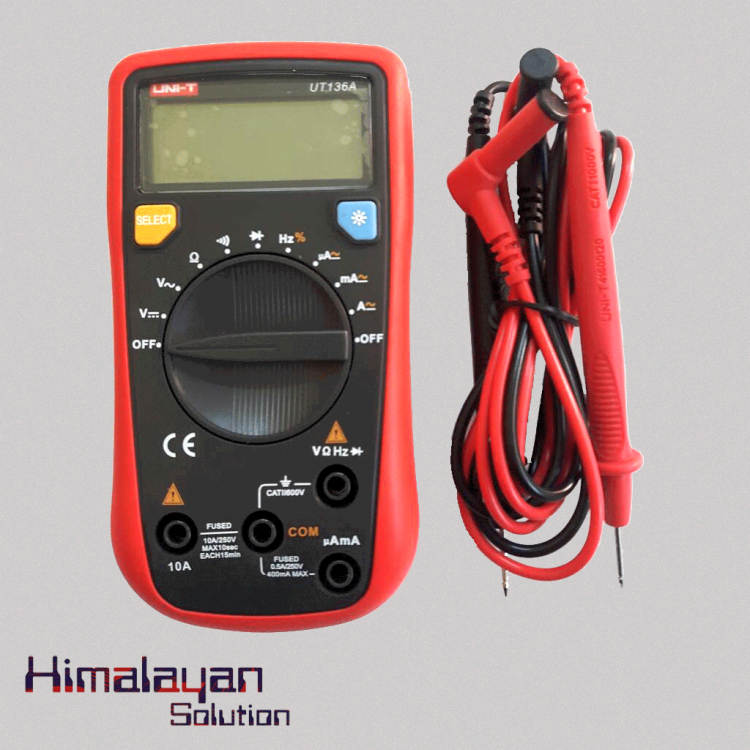

UT 136A is a handheld auto ranging digital multimeter. It has novel structural design, high degree of safety and reliability, low power consumption, stable performance. It can measure voltage, current, and resistance, use to trouble shoot electrical problems on different devices such as motor controls, power supplies, wiring system and many more. It also has features like continuity buzzer, auto power off, low battery display, data hold.
Availability: Out Of Stock
| Model | UT136A |
| Type | Digital Multimeter |
| LCD Size | 49 * 18mm |
| Max Display | 3999 |
| DC Voltage | 400mV/4V/40V/400V/500V ±(0.8%+1) |
| AC Voltage | 400mV/4V/40V/400V/500V ±(1.2%+3) |
| DC Current | 400uA/4mA/40mA/400mA/4A/10A ±(1.0%+2) |
| AC Current | 400uA/4mA/40mA/400mA/4A/10A ±(1.2%+5) |
| Resistance | 400Ω/4000Ω/40kΩ/400kΩ/4MΩ/40MΩ ±(1.0%+2) |
| Frequency | 10Hz/100Hz/1kHz/10kHz/100kHz/1MHz/10MHz ±(0.5%+3) |
| Duty Cycle | 0.1%∽99.9% |
| Diode Testing | Yes |
| Continuity Buzzer | Yes |
| Auto Power Off | Yes |
| Low Battery Display | Yes |
| Input Impedance For DC Voltage Measure | ≥10 MΩ |
| Auto Data Hold | Yes |
| Battery | 9v Battery (Not Included) |
| Color | Red & Grey |
| Size | 72 * 137 * 35mm |
| Weight | 200 g (Battery Included) |
